Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 1 |
| Motor Power: | 2.2KW | Overall Dimension: | 2400*2100*3200mm |
| Weight: | 3500KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | 600*800mm Rubber Tile Making Machine,ISO Rubber Tile Making Machine,CE brick making machine |
||
Rubber tile making machine/Rubber floor brick making machine/Rubber tile vulcanizing machine
Features of Rubber tile making machine
1. Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.
2. This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.
3.The working layer can be designed as customer's request, 2, 4, 6, etc
4. We can customize the moulds according to your special requirments.
5. We have got CE, ISO
2. Technical Parameters:
| Type | XLB-D(Y)600*800*1/2 | XLB-D(Y)800*800*1/2 | XLB-D(Y)1000*1000*1/2 |
| Nominal molding power(MN) | 1.20 | 1.00/1.60 | 1.00/1.60 |
| Working layer number | 2 | 1-2 | 1-2 |
| Piston stroke(mm) | 250-500 | 250-500 | 250-500 |
| Main motor power(KW) | 2.2 | 2.2 | 2.2 |
| Plate clearance(mm) | 250 | 125-500 | 125-500 |
| Calefaction manner | Steam ecectricity | Steam ecectricity | Steam ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipe heating power | 4.2 | 4.8 | 8.0 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.

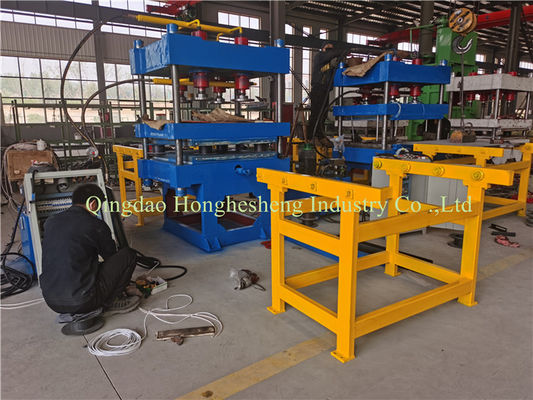

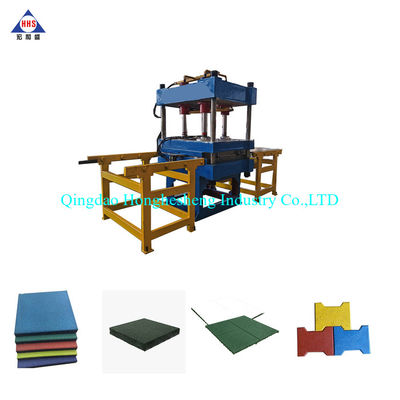

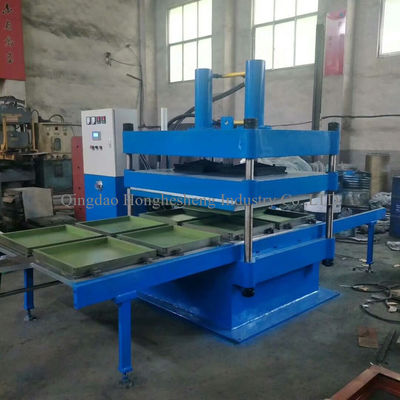

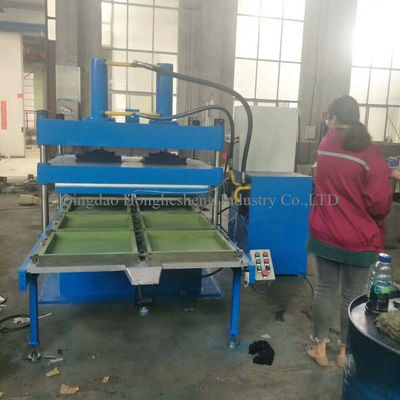

3. Machine Picture Show:
