Product Details:
Place of Origin: CHINA
Brand Name: HHS
Certification: CE/ISO
Model Number: XLB-50/120T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:4000-20000 /SET
Packaging Details: wood package/20-40 gp
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding

Description
Heating Platen Size: 550X550*4 Mold Closing ForceF: 50/120T
Plate Clearance: 150-300mm Working Layers: 1
Motor Power: 3/4KW Overall Dimension: 2200X900X2200mm
Weight: 4000KG Type: Vulcanizer,tile Machine
Color: Blue,Customizable Power Source: Hydraulic
Usage: Rubber Tile From Waste Tyre Granule, Glue, Colour Keyword: Tile Vulcanizing Press
High Light:

1050*1050mm Hydraulic Press Machine

,

120T Hydraulic Press Machine For Rubber Moulding

,

3000W Rubber Tile Press Machine

press for rubber tiles/ hydraulic press for rubber tile/ rubber tiles hydraulic press trays



product description

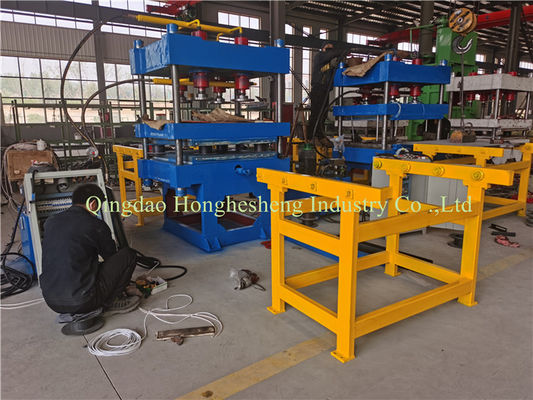

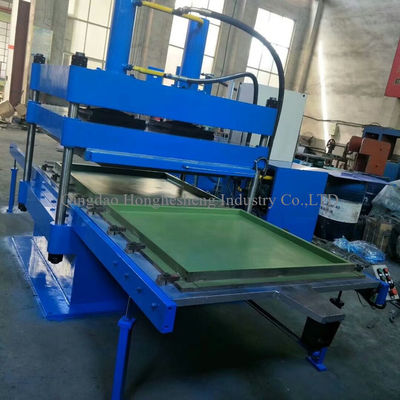

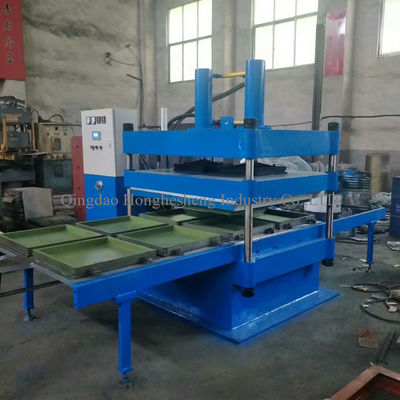

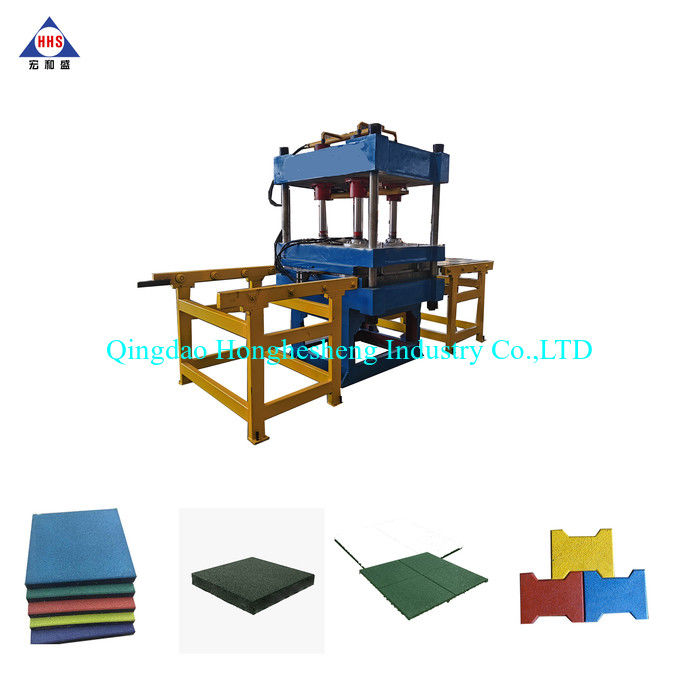

This machine is used to heat , vulcanize and solidify the rubber compound from mixer machine to be 500*500mm and 1000*1000mm rubber tiles .One set molds includes one top mold and two bottom mold . As showed in picture , the machine is equipped with adjustable rail device , which is used to push mold in and out for easy operation.



Machine feature

1. The machine adopts the semi-automatic control . The working program can be set in the cabinet and machine will work according to this program
2. Most spare parts for hydraulic system are imported from Taiwan
3. Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4. The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5. The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6. Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7. Main electrical elements are from Schneider France ,which can stabilize machine performance



Quality guarantee period : Within 12 months . During this period , if there are troubles with machines ,the manufacturer should send engineers to repair or replace the spare part if needed .according to demand of buyer , the supplier send engineers to guide the install and the debug . But the buyer should undertake all cost , such as ticket ,food , hotel for supplier . Also they need pay USD 100 for engineer one day .for the damage caused by the buyer , supplier provides the spare part and repair it with the best price .supplier offer the spare part of machine with the best price after the one year period .If machine is broken up due to the not correct of the buyer within the one years period . Supplier can send engineers if need to assist the buyer . But buyer should undertake all cost .Within one year guarantee period , if machine broken down due to its quality itself . Supplier should solve this for buyer with its own cost .Two parties can discuss other items which are not mentioned in this place



Technical Parameters



Parameter/model XLB 50T XLB 120T
Pressure(T) 50t 120t
Hot plate size (mm) 550*550nn/customized 1050*1050/customized
Stroke 450mm 200mm
Max temperature 300c 300c
Daylight 350mm 350mm
Motor power(kw) 3kw 3kw





 Detailed Pictures

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 0

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 1

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 2



120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 3



120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 4

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 5

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 6120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 7120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 8



120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 9

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 10120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 11120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 12120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 13



120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 14

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 15

120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 16120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 17120T 3000W 1050*1050mm Rubber Tile Hydraulic Press Machine For Rubber Moulding 18
