4-12Tires Retreading Rubber Vulcanization Tank 1600*2500mm 4000*8500mm

Product Application
Rubber Vulcanizing Oven Hose Vulcanization Autoclave Tank is mainly used for curing of rubber products such as cable, rubber shoes, rubber hose, rubber roller, adhesive tape, rubber ball, rubber lining, rubber vulcanization, reclaimed rubber desulphurization and SBR thermoplastic resin; Anti-corrosion, anti-corrosion, anti-deformation impregnation treatment, food and traditional Chinese medicine to eliminate (kill) bacteria, yarn, mane, socks heat stereotypes, sacrificial angle and bone high-pressure modification, degreasing, hydrolysis of various feathers, aluminum products oxidation . Also used for carbon materials, asbestos friction materials, gypsum and its products, and other materials autoclave, cooking, dipping, drying.
The second part of the design concept of the electric heating steaming rubber strips vulcanization cooking tank.
1, Electric heating steaming rubber strips vulcanization cooking tank human nature! (Everywhere ingenuity, reflecting the people-oriented design)

parameters

1. The electric heating vulcanization tank is automatically controlled by temperature, pressure and time, and is 20% more energy efficient than ordinary vulcanization tanks. Special stainless steel electric heating tube built-in new thermal conductive insulating magnesium oxide material, heating block, long service life.

2. The electric heating tube is controlled by three groups of switches separately. After reaching the set temperature, only one set of vulcanization and heat preservation is retained. This design effectively saves energy consumption and reduces the cost of vulcanization.

3. The high-temperature and high-pressure integrated fan circulates back and forth in the tank to spread the heat evenly from front to back.The high-temperature air is circulated back and forth in the tank body through a special air duct plate, ensuring uniform temperature inside the tank and no dead angle, which solves the difference in product quality caused by uneven temperature and pressure in the tank.

4. The temperature inside the tank is fast, the temperature is uniform, and the pressure is constant. After setting the working program, the control system automatically performs the tasks of temperature rise, heat preservation, vulcanization, etc., and sound and light alarm sounds after the vulcanization is completed.

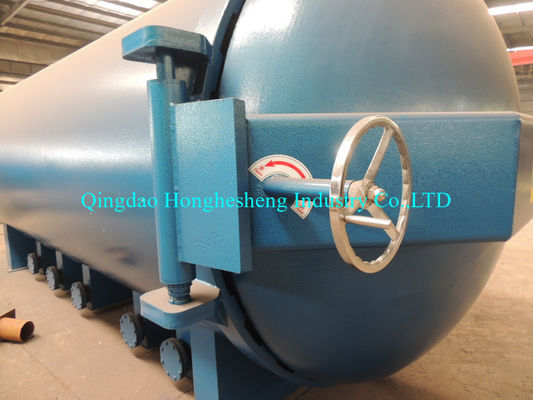

5. The machine adopts safety interlocking device to prevent unsafe accidents caused by accidental opening of the tank door when the equipment is under pressure or pressure, and the safety factor is high.
