Product Details:
|
| Place Of Origin: | Shandong, China | Max Working Press: | 0.65MPa |
|---|---|---|---|
| Warranty: | 1 Years | Core Components: | PLC, Pressure Vessel |
| Color: | Customer's Requirements | Advantage: | Full Automatic |
| Certification: | ASME CE, ASME CE | Key Selling Points: | Easy To Operate |
| Voltage: | 220V/380V/450V | Dimension(L*W*H): | 3200*2200*2300MM |
| Weight: | 64000 KG | Curing Time: | 2.6~3h |
| Power: | 110 KW | Temperature: | 95~120℃ |
| High Light: | HHS Vulcanizing Tank,0.65MPa Vulcanizing Tank,Higher Efficiency Vulcanizing Tank |
||
Used tire cold retread vulcanizing tank are safe and reliable curing equipment, this tank chain device is the guarantee quality the first points qualified products. The equipment is available electricity or steam, heat conduction oil heat. Equipment operation in control panel before you can adjust on the pressure, temperature, time
Rubber vulcanization is a chemical process at a given pressure, temperature and time for converting natural rubber into more durable materials by the addition of sulfur. These additives modify the polymer by forming cross-links (bridges) between individual polymer chains. Vulcanized materials are less sticky and have superior mechanical properties. And vulcanization autoclave is used widely for this chemical process.
Brand and Material of Major Components
| No. | item | material |
| 1 | dished head | carbon steel Q345R |
| 2 | tank | carbon steel Q345R |
| 3 | flange | forged carbon steel |
| 4 | safety interlocking device (pressure automatic) | |
| 5 | track | carbon or stainless steel |

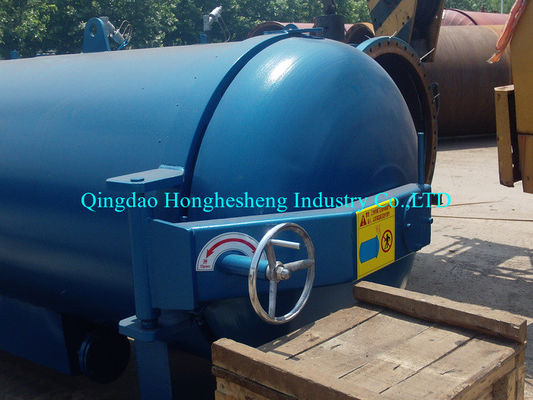

| 6 | manual door opening device | |
| 7 | saddle | carbon steel Q235B |
| 8 | High temperature and high pressure fan ventilator | air or water cooling |
| 9 | thermal insulation head | carbon steel Q235B |
| 10 | Insulation material (double layer) | aluminum silicate cotton |

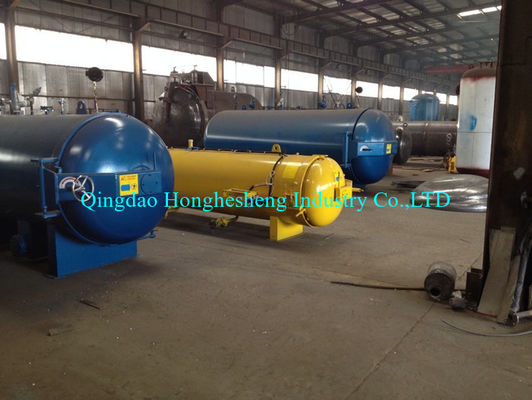

factory woriking shop
