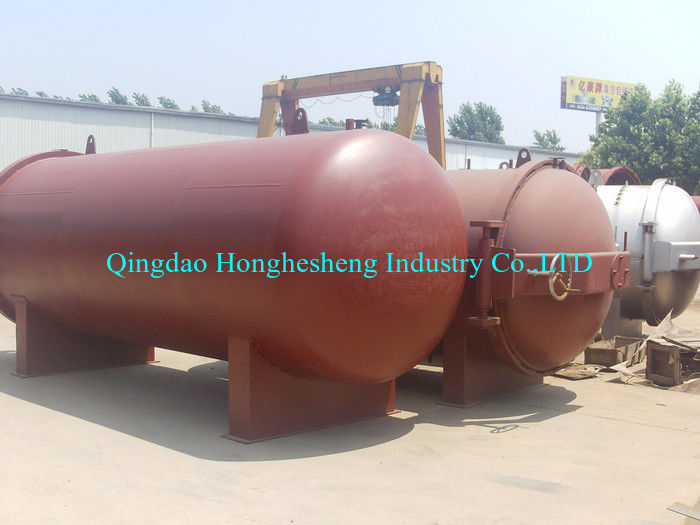

Rubber Roller Curing Autoclave Vulcanization Tank 1500mm To 4700mm 0.65MPa

rubber roller vulcanization autoclave

Specsion

Φ1500-Φ4700L(the dimension can according to customers’requirement to design)

The interlocking device is the first important point to ensure the acceptable product. The equipment can be heated by electric, steam or conduction oil. Before working, you can adjust the pressure, temperature and time on the control panel.

Temperature 95~120°C

Pressure 0.5~0.6Mpa

Automatic pressure 0.7~0.8Mpa

Entire pressure 0.4Mpa

Entire working time When the time is up to 100 degrees, pressure is 0.48Mpa, the machine begin automatic work.

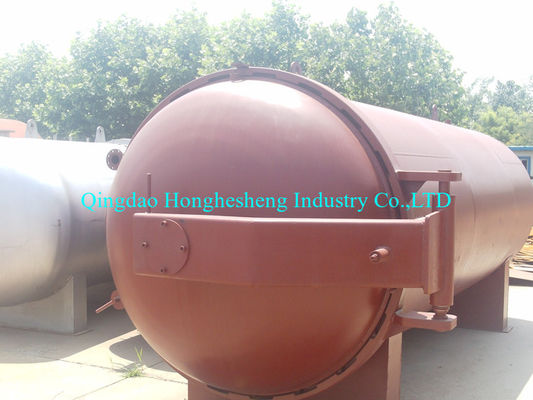

Operating after manual closing the door, the fast opening door motor contact, push the close button, the Vulcanizing boiler enter the status of self-control.

Working principle for steam vulcanizing autoclave

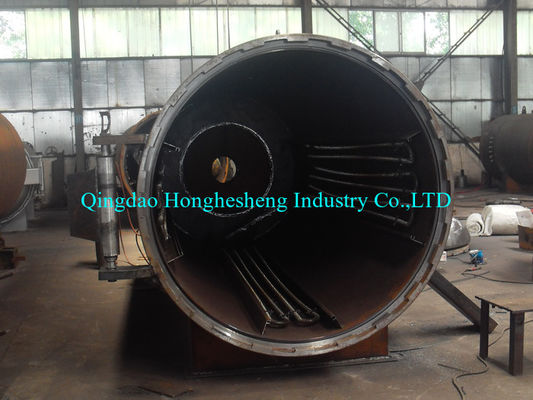

The steam enter into the steam diffusion tube by entrance of steam which at the bottom of the steam vulcanizing boiler and the entrance can be controlled by automatic valve. The steam diffusion tubes vertical arrangement in the bottom of the tank. The small holes which diameters are 3mm,4mm and 5mm on the steam diffusion tube are arranged according to certain rules and angel to ensure that the steam spread in the tank evenly. Thus it can prevent the different quality of the product because of the uneven steam. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.

Technical parameter

Ranges of application

It is mainly used for rubber tyre retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
