8 Tyres Retreading Line Multi Functional Precure Chamber

Advantages:

1 Easy-handing and safety

2 Advantage design

3 Almost full automatic control

4 equality heat and good heat distribution

5 Durable and reliable

Benefits of tyre retreading

The benefits of retreading are that it is both environmentally friendly and cost-efficient! When the tread has worn off, only about 20% of the tyre is used up. The carcass, which represents about 80% of the tyre's value, can be re-rubberized for a "new tyre life".

To produce a truck or bus tyre requires about 60-80 kg of rubber mixture. Retreading the tyre takes only about 15 kg of rubber. A considerable amount of raw materials can therefore be saved. In the EU, this equates to more than 300,000 tones per year!

To produce a car tyre requires about 28 litres of crude oil. To retread a car tyre, on the other hand, only 5.5 litres of oil are needed

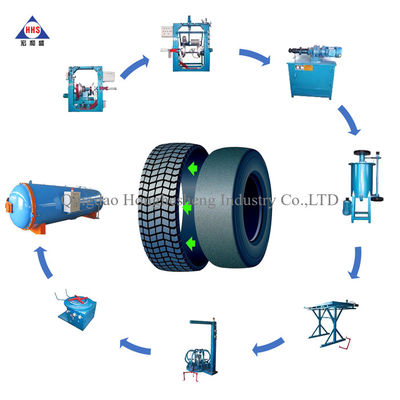

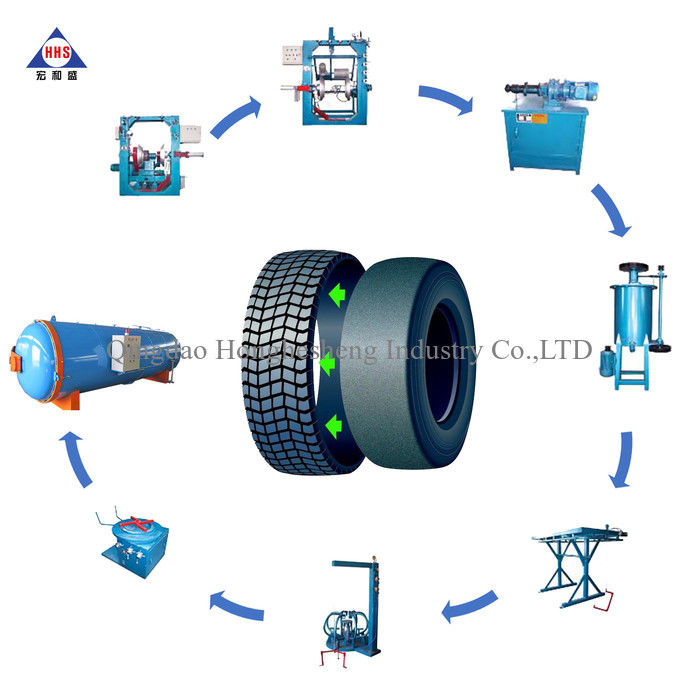

working process of the tyre retreading flow chart:

1.check out

Make sure the used tire casing can be accepted for retreading, or rejection.

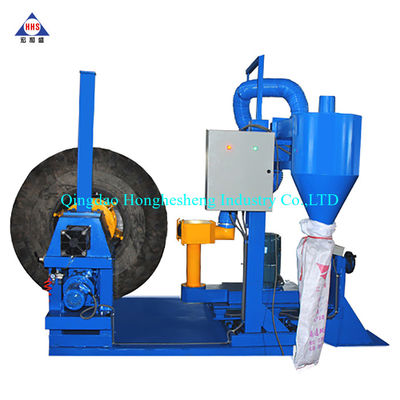

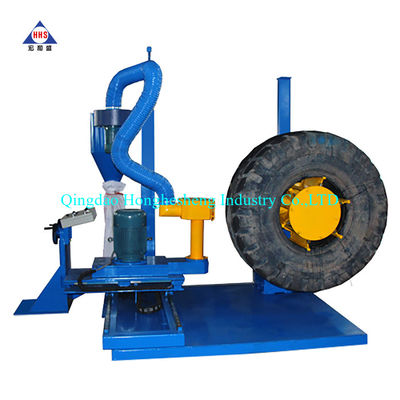

2) Buffing

Buffing tire casing, buffing the worn tread rubber..

3) Planing

Remove all embedded objects in the casing, make sure the tire surface clean and solid, suitable for retreading.

4) Use glue gun

Use glue gun to spray a thin layer of concentrated liquid cement in the repair tire casings.

5) Glue filling
Fill in the repair cementing in the tire wound.

6) Apply the tread rubber

Apply the cushion gum between the tread rubber and the casing, as the bonding layer. As a new layer , the intensive precure tread rubber is forming in the tire casings

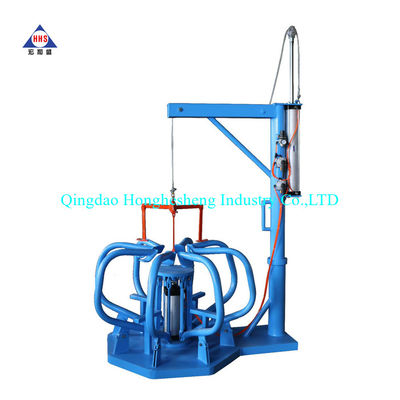

7) Assemble envelop

A special envelop is used to package the tires, ensure the tire casing and precure tread rubber successfully bond together

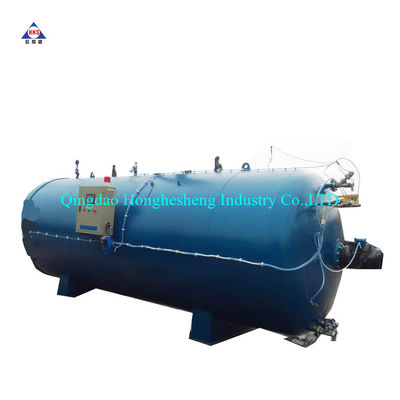

8) Curing

This is a process of applying the new tread rubber to the prepared tire casings, then put into curing chamber, in a certain pressure and temperature after a period of correct time curing, the cushion rubber layer will adhere tight to the tire casings.

9) Final inspection

Make sure all the recap been checked carefully, to ensure the safety and unharmed appearance of recycling products which sell to customers.

10) Everything looks "like new"

Now, end product! Safe and durable, is equally matched with the new tire. And ready to hit the road!

4. Optional production line

4pcs production line, 6pcs production line

8pcs production line, 10pcs production line

12pcs production line, 16pcs production line

20pcs production line, 24pcs production line, etc

Product parameter
