Product Details:
|
| Place Of Origin: | Shandong, China | Max Working Press: | 1.0 MPa |
|---|---|---|---|
| Warranty: | 1 Years | Core Components: | PLC, Pressure Vessel |
| Color: | Customer's Requirements | Advantage: | Full Automatic |
| Certification: | ASME CE, ASME CE | Key Selling Points: | Easy To Operate |
| Voltage: | 380V/220V,for Your Optional | Dimension(L*W*H): | 6000MM*2500MM*2500MM |
| Weight: | 11000KG | Work Temperature: | 150~200℃ Curing Temperature |
| High Light: | Length 7000mm Vulcanizing Tank,Dia 1700mm vulcanizing tank,rubber shoes curing chamber |
||

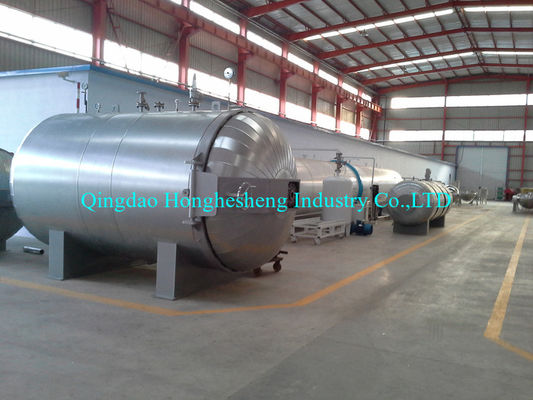

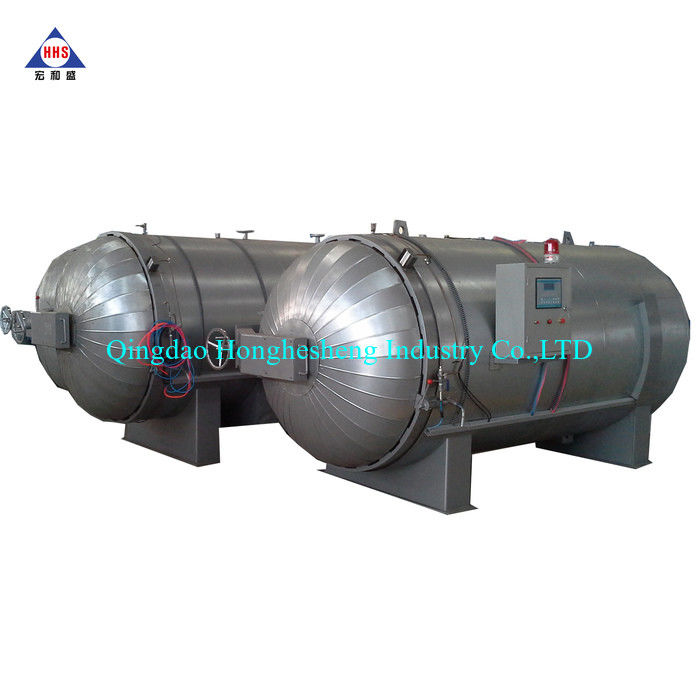

rubber shoes curing chamber/vulcanizing tank
this vulcanization controls temperature,pressure and process time automatically.saves the trouble of installing a boiler.
l Electrical coil heats water to produce steam.the coil adopts nichrome material connecting to wire terminal which is placed outside the chamber of this vulcanization in order to conduct maintenance easily and insulation is very well done.
l The heating coil is designed for multicontrol and individual control.multicontrol can switch to individual control when the set temperature is obtained.
the temperature inside this vulcanization features fast delivery and even distribution which produces an uniform effect on all the products treated.
specifications(all the specifications customized available)
CodeDZQ-07
Diameter 1700mm
length 7000mm
material Q235B
thickness 12mm
cover head 12mm
Design pressure 0.8mpa
design temp 180°C
Safety door and inflatable seal
l Easy operation manual type.Inflation is done on the door seal ring to achieve a desired seal position via process pressure.
l the seal ring repositioned when the process pressure is gone, which guarantee safety and saves wear out.
Safety interlock
l The Safety interlock instrument is designed in case of mishandling of the door while process pressure still works.this vulcanization is equipped with two safety interlock options.
l automatic pressure interlock instrument, the door will be locked in an automatic manner when the process pressure reachs as high as 0.01MPA,There will be no way to open the door.
l manual interlock instrument,process pressure can not be applied while the manual interlock remains in open position, for the simple reason that the valve connecting to the manual interlock will block the treatment pressure.make sure the manual interlock remains in an open position when opening the door. bear in mind that the manual interlock operation always comes before the electrical-drived interlock operation. Thus guarantee a pressure free door-opening operation.
Temperature control
automatic temperature balance to meet the set value
precisely temperature control
l three stratigic location inside the chamber is choosen to test the temperature distribution.
l two digital temperature reader.
l one temperature transmitter to conduct data collecting to control the heating coil.
l Temperature tolerance is as precisely as ±1°C
l supplemental manual valve is designed
l digital temperature reader for easy operation
Pressure control
l pressure inside the chamber is controlled automatically to match the setting value via phumatic angle seat valve,in a compensate and relief manner.
l manual valve option is available for pressure control in case of emergency.
l two pressure gauge for easy operation.
l one lift safety valve attached on the shell body for overpressure relief.
l overpressure alarming systerm.
Time control
l Rise up, treamtment and cooling time is controlled automatically.
l multi-segment rise up and process plan is avilable.
l automatic control of uniform treating temperature .
l digital reader accessible( range 1-999 minutes).easy operation data setting for product, specification and process..
