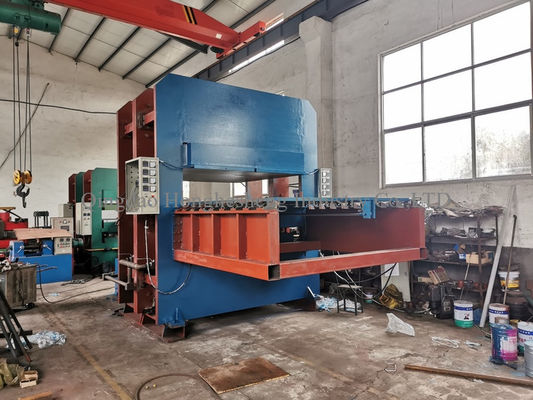

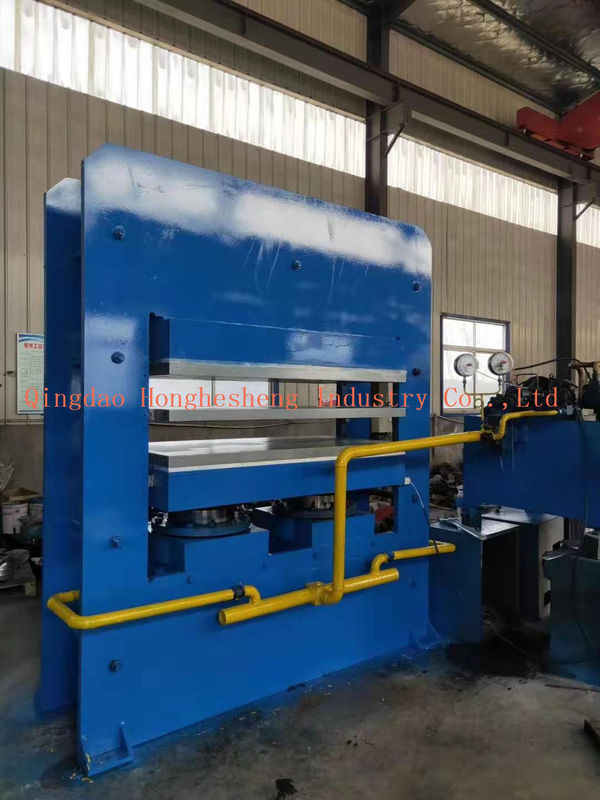

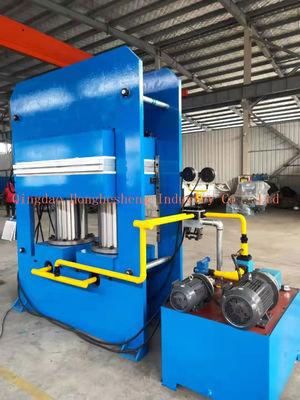

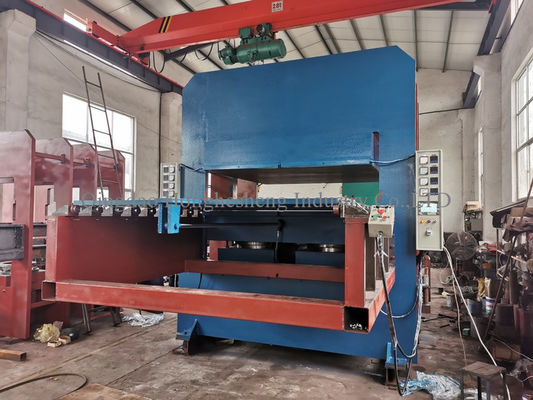

Hydraulic Large Rubber Plate Vulcanizing Press Machine XLB 1400*8000 2000T

We have been specializing in providing hydraulic press machine since our establishment in 2004
We provide a wide range of vulcanizing hot press, ranging from 20 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning.
Our range of products include
1.Column type Vulcanizing Press
2.Preure Tread Liner Molding Press
3.Foaming Press Machine
4.Hydraulic Heating Press Machine
5.Plate Vulcanizing Machine

1.Applicable for various rubber moulding production

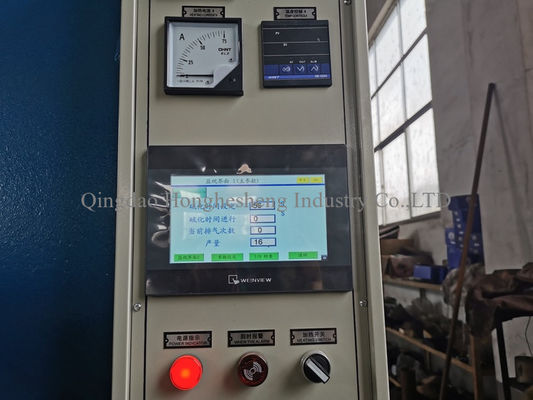

2.PLC control & touch screen

3.Auto mold closing, air exhaust, temperature control, timing setting

4.Custom mold push out system

5.Well-sealed hydraulic cylinder with precise grinding and finishing

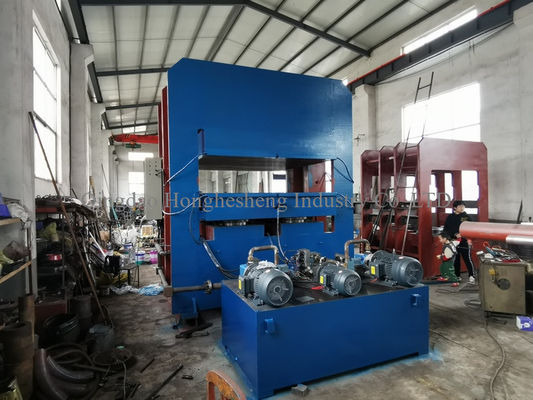

6.Stable hydraulic pressure station

1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX type

polyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant . The Oil seal is NOK brand from Janpan .

2. Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc

3.The vulcanizing temperature can be set and showed in the digital displan . For example , if you need 250 C , just set250 C in the digital panel .When it reaches your aimed temperature , the temperature will stop to rise and keep stable.Sensor are installed in the heating plate and connect with the temperature indicator in the heating plate . It will show clear the temperature of every heating plate

4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically

5.frame plate is made of high quality 45 steel . The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering.The pillar will be plated with chrome

6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation

7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time

8.we will install the IR sensor in both side of press to protect safety of any opeators

9.The hydrualic pupm and valve will be use Yuken Hydraulic pump & valve
