11KW Rubber Bale Cutter 380V 50HZ For Pelletizing Line

production

Bale cutter for pelletizing line

HHS bale cutter for pelletizing lines are the leading in domestic rubber and plastic industry, HHS’s experiences and new technologies help the company gain a number of national invention patents which ensure the stability of HHS Rubber and Plastic. For plastic and materials with high viscosity are suitable and pelletizing line of high stickiness particles are suitable.

Advantages

1.With the whole process chain units , acousto-optic alarming and rapid point of failure, such as locking features of intelligent control,All contact with the material even for stainless steel materials unit Pay attention to details, Perfect and reliable , Energy-saving and durable.
2.The use of temperature control system to guarantee the accuracy of materials on the temperature sensitivity.
3.Especially for the charging barrel and mold head, our company use foreign technology to protect and control Mold head pressure and to avoid excessive pressure caused injuries when the burst
4. Mandatory two-draft system and the single-screw feed technology portfolio not only meets the second consecutive high-demanding materials mixing, and the resolution of traditional work cut consumption broken time-consuming , better environmental protection and automation of production capacity and continuous operation of the corporate image.

parameters

Type	XQL-80	XQL-120	XQL-125
Wid of the knife(mm)	600	760	760
Knife stroke(mm)	680	680	680
Cylinder total pressure(kN)	80	120	125
Stroke time(s)	14-16	13-16	13-16
Motor power(kw)	5.5	11	14
Dimension(mm)	2122*1440*2509	1950*1400*2338	2300*1500*2530
Weight(kg)	1600	2000	2600

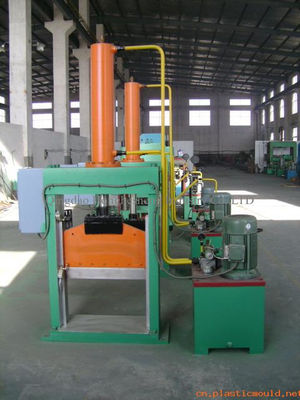

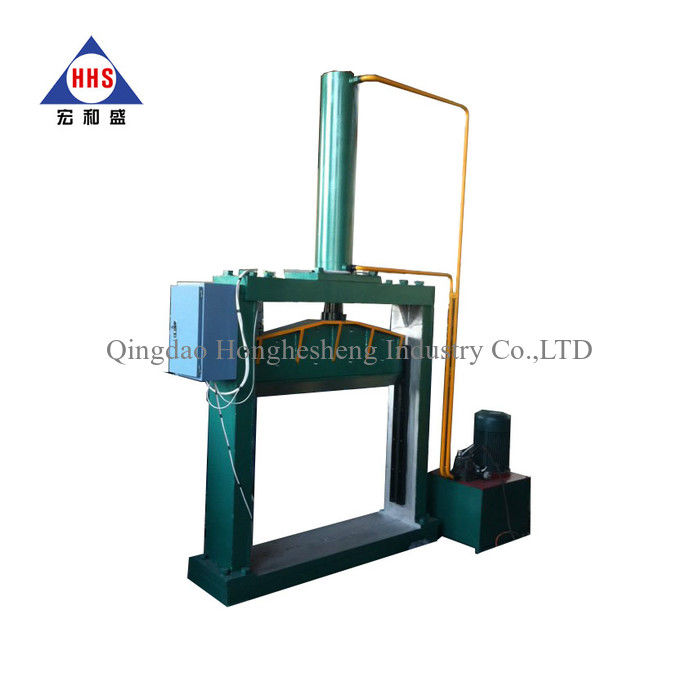

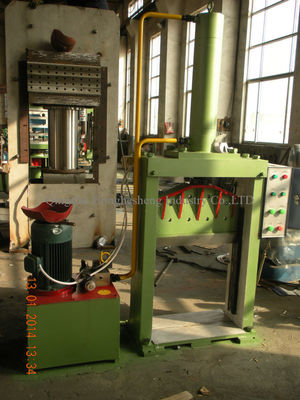

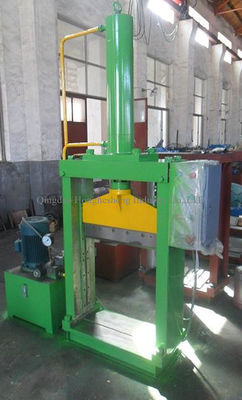

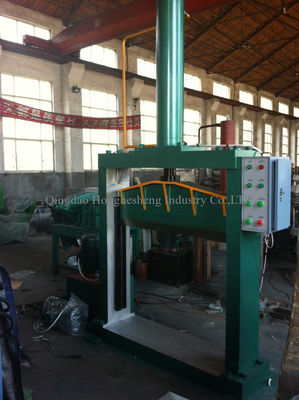

product show

Our Service

Our partnership

* Powerful enterprise
* Government enterprise and institution
* University and research department

After-Sales Service

* Quick respond.Solutions can be provided by phone or video.
* Engineers available to service machinery overseas.

Packing & Delivery

company introduction

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…

welcome to visit our factory!

1. Q: Are you a manufacturer or trading company?

A: We are the manufacturer. We have our own plant,worker and techniques research developing department.

2 .Q: Where is your factory located? How can I visit there?

A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.

Nearest airport is Qingdao liuting international airport

Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.

3. Q: What are your hot sale machine?

A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.

4. Q: How does your factory do regarding quality control?

A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.

5 .Q: Are the techncal parameter is fixed?

A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.

6 How to send us your enquiry? Kindly tell me answer

-1 what is your blade width ? 650 mm?1000mm?

-2 distance? based on your meterial height

-3 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently

Contact Mary for quotation NOW:

Cell: +8618364237330 (whatsApp and viber)
