Product Details:
|
| Heating Platen Size: | 1080X1080*1 | Mold Closing ForceF: | 100/120/160T |
|---|---|---|---|
| Plate Clearance: | 150-300mm | Working Layers: | 1 |
| Motor Power: | 5.5/7.5KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 9000KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | Tile Vulcanizing Press |
| High Light: | 120 Ton Tire Recycling Machine,7.5kw Tire Recycling Machine,1100x1100 Rubber Vulcanizing Machine |
||
We provide a wide range of vulcanizing hot press, ranging from 20 to 200 tons rubber flooring tiles making machine. We provide turnkey solution and technical service, for complete machinery installation and production line planning
our range of rubber tiles production range includes
1.Safety type rubber mixer machine
2.XLB-550*550*1 /0.5MN Up stroke Testing type rubber tiles making machine
3.XLB-550*550*4/0.5MN Up Stroke rubber tiles vulcanizing press machine
4.XLB-1100*1100*1/1.2MN Up stroke rubber tiles vulcanizing machine
5.XLB-1350*1200/1.2 MN down stroke type rubber tiles vulcanizing machine
6.Different types of rubber tile mold
rubber flooring tiles product line is one type of environmental type rubber machine , it is used to process the waste tire rubber granules to be different types of rubber flooring tiles by vulcanizing and solidifying . Meanwhile , it can also process the PU granules , EPDM granules and nature rubber to be tiles . Generally we can customize the machine according customer need
Technical Parameters
| Parameter/model | XLB 1080*1080*1 |
| Pressure(T) | 200T |
| Hot plate size (mm) | 1080*1080 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke(mm) | 150-300 |
| Motor power(kw) | 5.5/7.5 |
| Weight(kg) | 9000 |

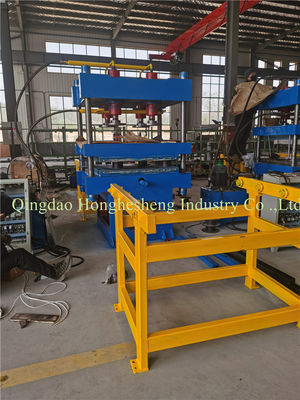

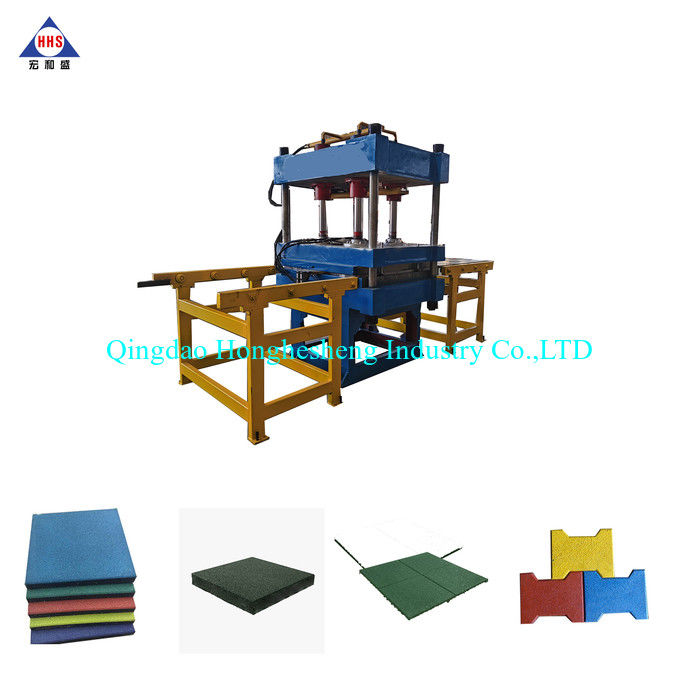

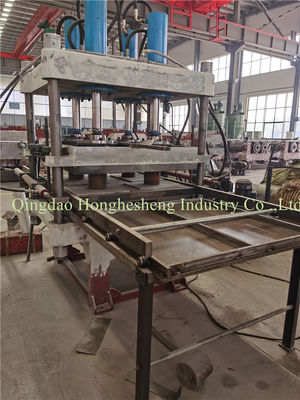

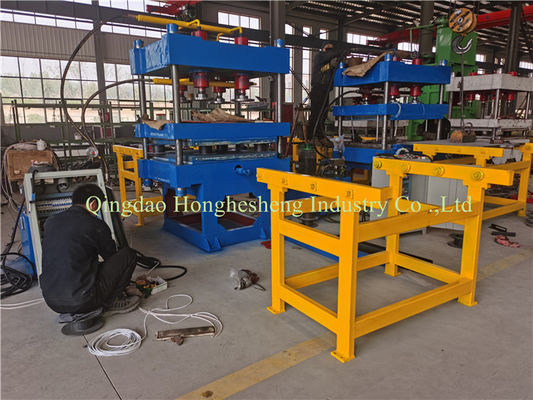

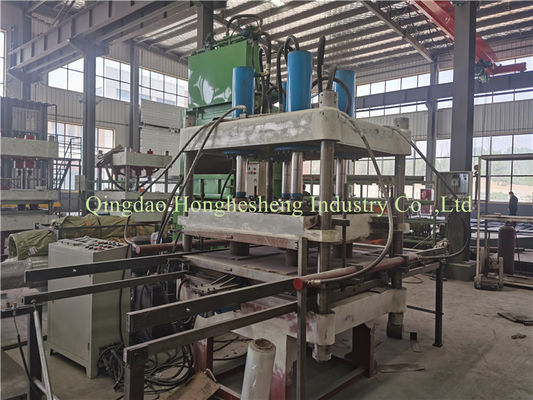

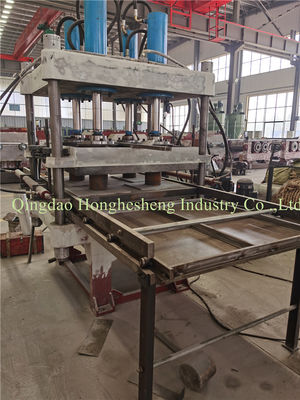

Detailed Pictures
