Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 4 |
| Motor Power: | 2.2KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 3600KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | 1000 Ton Compression Molding Press,5.5kw Compression Molding Press,Rubber Tile Vulcanizing Press |
||
Germany Quality 200~1000 Ton Compression Molding Press for Rubber Tiles Rubber Paver Making Machine Hot Selling at Abroad
Basic introduction of Germany Quality 200~1000 Ton Compression Molding Press for Rubber Tiles Rubber Paver Making Machine Hot Selling at Abroad.
Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) vulcanizing and compression molding.
rubber vulcanizing press can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc..
Configuration of Germany Quality 200~1000 Ton Compression Molding Press for Rubber Tiles Rubber Paver Making Machine Hot Selling at Abroad.
1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance
| Parameter/model | XLB 1100x1100x1 |
| Pressure (T) | 100/120/160 |
| Hot plate size (mm) | 1100*1100*60 |
| Plates Distance (mm) | 150-300 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke (mm) | 150-300 |
| Motor power (kw) | 5.5/7.5 |
| Weight(kg) | 4000 |
| Parameter/model | XLB 550x550x4 |
| Pressure (T) | 50/80 |
| Hot plate size (mm) | 550*550*60 |
| Plates Distance (mm) | 150 |
| Working layer | 4 |
| Hot plate quantity | 5 |
| Piston stroke (mm) | 600 |
| Motor power (kw) | 2.2 |
| Weight(kg) | 3500 |

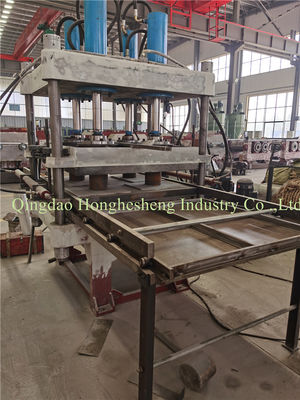

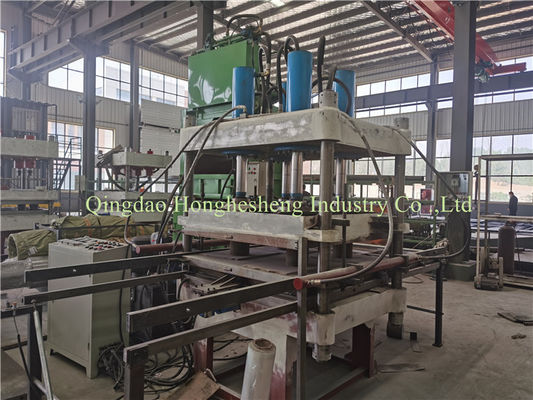

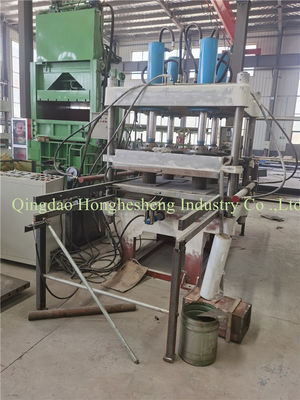

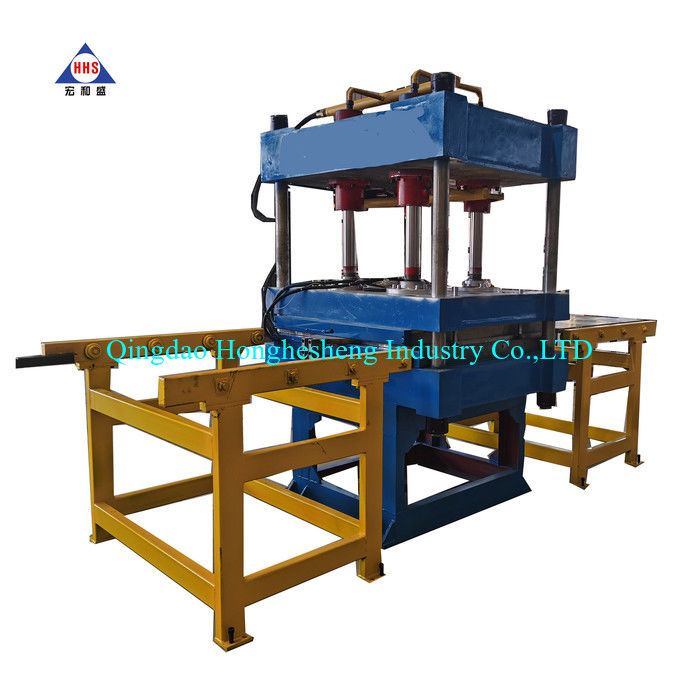

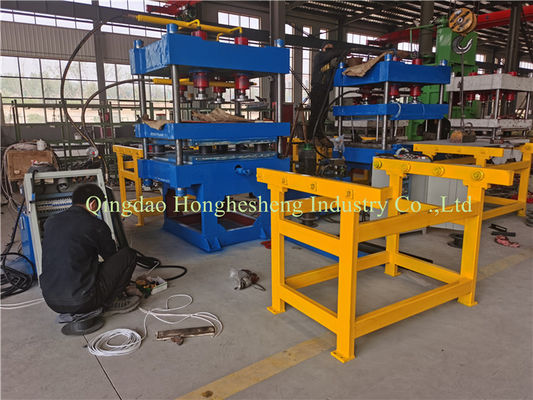

Detailed Pictures
The models pictures of Germany Quality 200~1000 Ton Compression Molding Press for Rubber Tiles Rubber Paver Making Machine Hot Selling at Abroad.
