Product Details:
|
| TYRE SIZE: | 4-18 INCHES Motorcycle Tyre ,atv | Linng Cloth: | 400 |
|---|---|---|---|
| Nose Center Height: | 850-870 | Working Air: | 0.7-0.9mpa |
| Curtain Roll Max Diameter: | 450mm | Colour: | Green,blue, Customize |
| Operation Person: | 6-8 Workers | Raw Material: | Reclaimed Rubber |
| Production Capacity: | 10000 Tires Per Day | Power (kW): | 7.5 KW |
| Weight (KG): | 2500 KG | Voltage: | According To Customers' Requirement |
| High Light: | Hydraulic Motorcycle Tyre Making Machine,4in Tyre Making Machine,Tyre Inner Tube Vulcanizing Machinery |
||
Tyre Inner Tube Vulcanizing Machinery/Bicycle/Motorcycle Tyre Making Machine

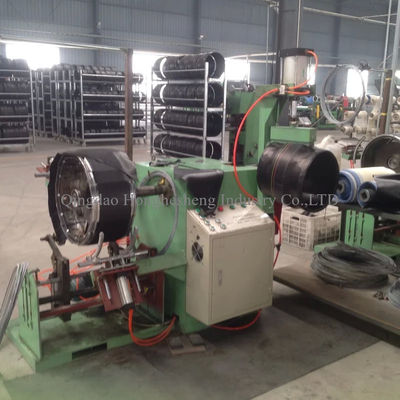

Full Automatic Tire Building Machine For Motorcycle
1. Automatic control the tread length, cutting and building function
2. Tread centering function, avoid off center building
3. Tread stretching system, make tread have some lension with tire casing, stable tread building
4. Mechanism or electricity circumference measurement
5. With safe and lifting device, safe operation, reliable convenient
1. Paremeter
| Model | Name of equipment | Model | QTY | Notes | |
| Milling phase | |||||
| 1 | Single blade cutter | 660-1 | Width of blade660mm | ||
| 2 | Banbury mixer | X(S)M-35/30 | 1 | Hydraulic rollover unloading | |
| 3 | Mixing mill | XK-450 | 1 | ||
| 4 | Rubber sheet cooling machine | XPA-600 | 1 | Working length 10 meters | |
| Calendering phase | |||||
| 1 | Four roller calender | XY4-1400 | 1 | Include front,back device | |
| 2 | Mixing mill | XK-450 | 1 | ||
| Molding phase | |||||
| 1 | Mixing mill | XK-450 | 1 | ||
| 2 | Mixing mill | XK-400 | 1 | ||
| 3 | Rubber extruder | XJ-150 | 1 | ||
| 4 | Shutter car | 10 layers | 10 | 2000×900×60 | |
| 5 | Vertical cutting machine | LC-1500 | 1 | ||
| 6 | Bead ring unit | 1 | |||
| 7 | STB former | 2 | |||
| Vulcanizing phase | |||||

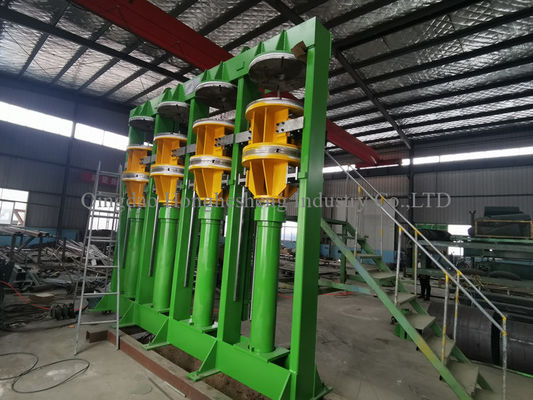

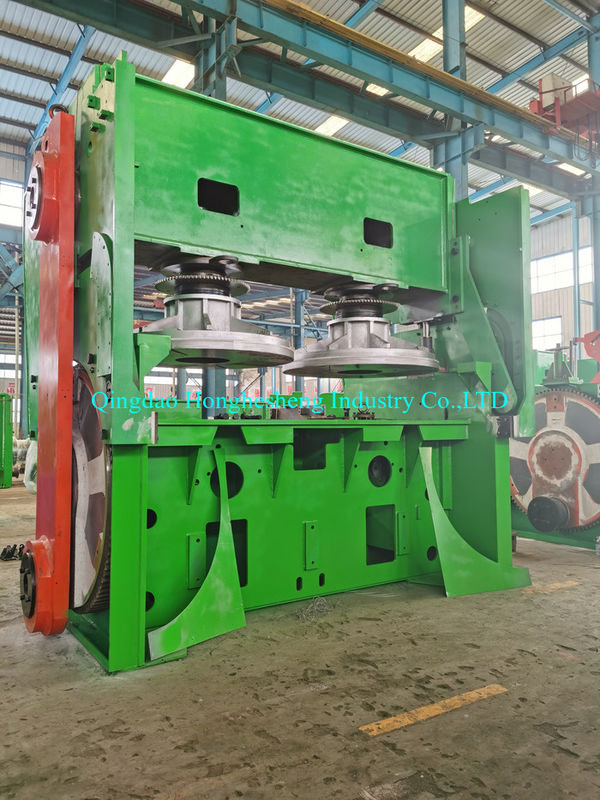

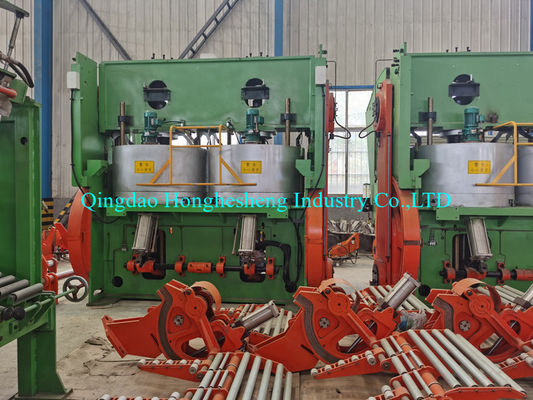

| Unit 1 | Four layers hydraulic vulcanizing machine | 80T | 6 | Inclued 2 sets process for tyre | |
| 2 | Splicer | 1 | |||
| 3 | Tyre shell perforating machine | 2 | |||
| 4 | Tyre shell heading press | 2 | |||
| 5 | Extruder | XJ-115 | 1 | ||
| 6 | Mixing mill | XK-400 | 1 | ||
| 7 | Tire shell machine | 3 | |||
| 8 | Tyre air setting machine | 3 | |||

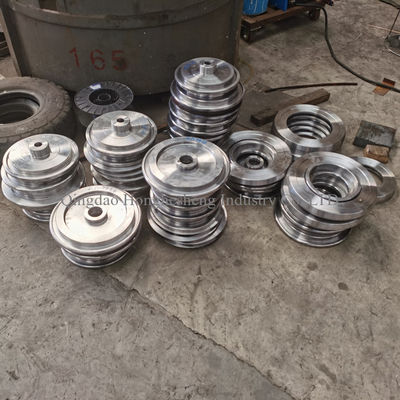

| 9 | Mold | According customer’s quantity,patterns and other requirements | |||
