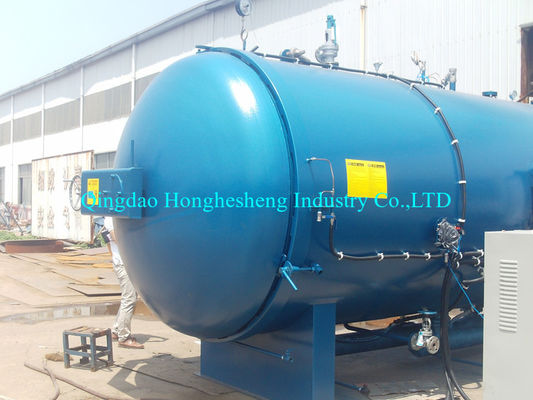

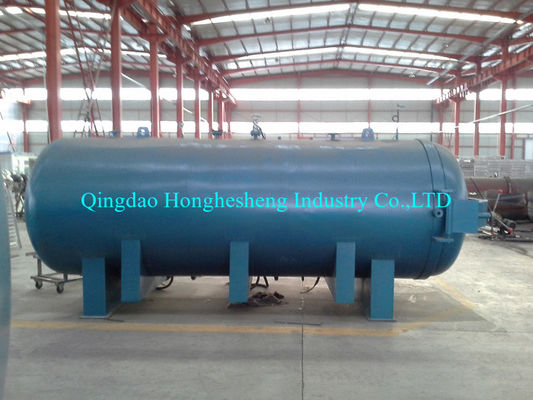

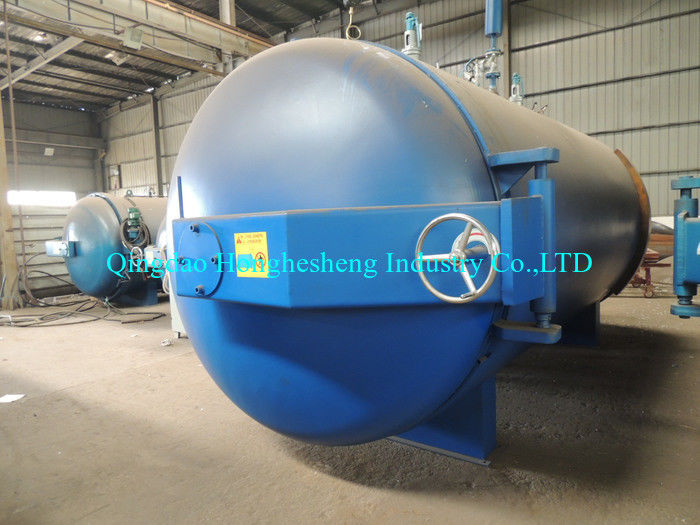

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading
Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Large Image :  Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Product Details:
Place of Origin: CHINA
Brand Name: HHS
Certification: CE ISO
Model Number: HD-2-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:5000-220000 /SET
Packaging Details: wood package /20-40 container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading

Description
Place Of Origin: Shandong, China Max Working Press: 1.0 MPa
Warranty: 1 Years Core Components: PLC, Pressure Vessel
Color: Customer's Requirements Advantage: Full Automatic
Certification: ASME CE, ASME CE Key Selling Points: Easy To Operate
Voltage: 380V/220V,for Your Optional Dimension(L*W*H): 6000MM*2500MM*2500MM
Weight: 11000KG Work Temperature: 150~200℃ Curing Temperature
High Light:

Rubber Tire Retreading Vulcanizing Autoclave

,

Pressure Vessel Vulcanizing Autoclave

,

ASME CE Certified Vulcanization Tank

Tire retreading vulcanizing tank autoclave



Features
Product Introduction:

The vulcanizer is mainly used for rubber tire retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization.Styrene-butadiene rubber thermoplastic refining, wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, It also widely used in the gypsum and its products and other materials autoclaving.



Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 0

Characteristic:

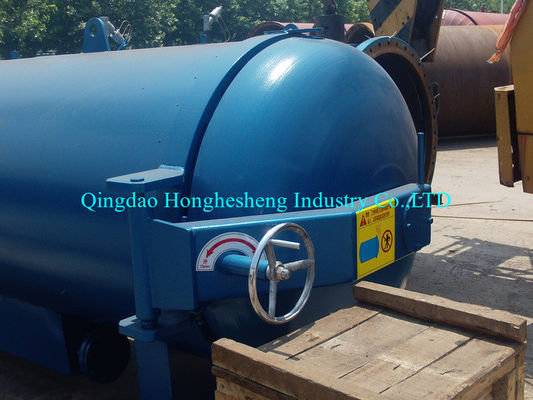

The Automatic rubber belt vulcanizer is a pressure vessel with speed open door. Its openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure,convenient operation, good sealing performance, the temperature in the tank is uniform,furthermore, complete safety accessories(equipped with safety interlock device).

Air vulcanization equipment used for tire retreading

The Used tire vulcanizer be divided into the followings:
According to the structure:
1. horizontal 2. vertical
According to the heating medium:
1. steam heated 2. conducting oil heated 3. compressed air electric heated
According to the heating method:
1. direct 2. indirect
According to the control mode:
1. manual 2. electromechanical integration 3. computer-controlled



Size Information
Item
800
1200
1500
1700
2000
2600
Inner diameter(mm)
800
1200
1500
1700
2000
2600
Canister length(mm)
22000
3000
3000
4000
5000
10000
Number of lid sawtooth
12
12
14
14
16
24
thickness of lid (mm)
10
10
10
10
16
14
Thickness of the tank body(mm)
10
10
10
10
12
14
Working pressure(MPa)
0.8
0.8
0.8
0.8
0.8
0.55
Dimensions(mm)
(length*width*height)
22766*1445
*1170
4010*1575
*1670
3960*2150
*2050
4925*2162
*2070
6200*2590
*2424
11722*3360
*4136
Weight(Kg)
5580
2017
2950
3835
6500
16775



Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 2Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 3

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 4Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 5Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 6Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 7

Packaging & Shipping

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 8



Trade Shows



Air vulcanization equipment used for tire retreading

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 10Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 11

Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 12Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 13Pressure Vessel Vulcanizing Autoclave For Rubber Tire Retreading 14
