Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | 710x2130 Two Roll Calender,XY 2I two roll calender,710mm 2 roll calender machine |
||
XY-2I 710x2130 Two rolls rubber calender /2 roll Calendar Machine for coating rubber and fabric
Wechat / Whats App:+8618364237330
1.Structure
The machine is consisted of frame, roll, adjusting spacing device, speed ratio gear, the adjusting temperature device of roll, reducer, adjusting speed motor, bed plate ,coupling ,etc.
2.Uses
It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics
3.Feature
1. Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
parameters
| Model | XY-230*630 | XY-252*720 | XY-360*1120 | XY-400*1200 | XY-450*1400 | XY-610*1730 |
| roller diameter | 230 | 252 | 360 | 400 | 450 | 610 |
| roller working length | 630 | 720 | 1120 | 1200 | 1400 | 1730 |
| roller ratio | 1:1:1/1:1.2:1 | 1:1:1 | 1:1:1 | 1:1:1 | 1:1:1 | 1:1:1 |
| middle roll linear speed | 0.8-8 M/MIN | 2-15.9 | 3-20 | 3-26.39 | 2.62-26.62 | 5.4-54 |
| Min calendering thickness | 0.2MM | 0.2MM | O.2MM | 0.2 | 0.2 | 0.15 |
| calender product width | 500 | 550 | 920MM | 1200 | 1250 | 1500 |
| motor | 7.5 KW | 22 KW | 45KW | 55 | 75 | 160 |

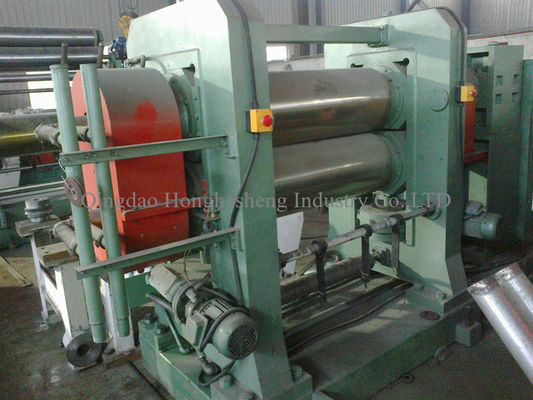

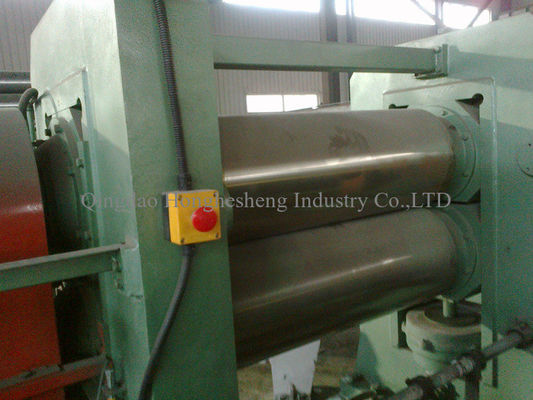

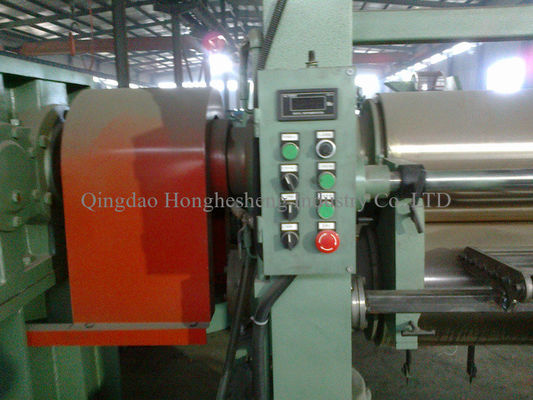

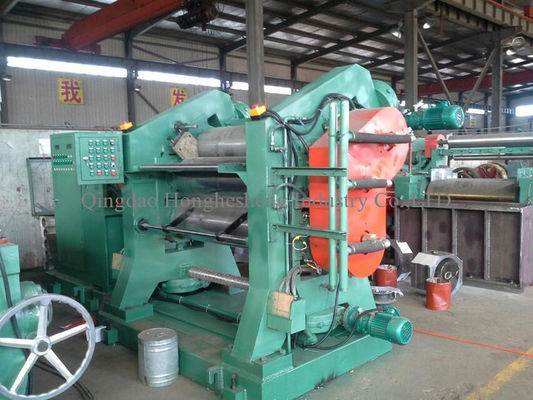

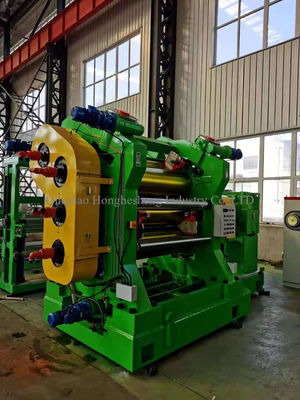

Detailed picture
