Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | Three Roll Rubber Calender Machine,Dia 360mm Rubber Calender Machine,3 Roll Rubber Sheet Calendering Machine |
||
Three Roll Rubber Calender Machine / Rubber Sheet Calendering Machine
Wechat / Whats App:+86-1836423733
Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Technical spec.:
| Model | XY-31 630 |
XY-31 1120A XY-3 1120A XY-3 1120A |
XY-31 1400 |
XY-31 1200 XY-31 1500 |
|
| Working diameter of rolls | mm | 230 | 360 | 400 | 450 |
| Working length of rolls | mm | 630 | 1120 | 1200 | 1200(1500) |
| Speed ratio |
1:1:1 1:1.42:1 |
1:1:1 0.733:1:1 0.733:1:0.733 |
1:1:1 1:1.385:1.385 1:1.385:1 |
1:1:1 1:1.5:1 |
|
| Working linear speed of middle roll(m/min) | mm | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 |
| Adjusting nip range ratio | mm | 0-7 | 0-10 | 0-10 | 0-6 |
| Min.Calendaring product thickness | mm | 0.2 | 0.2 | 0.2 | 0.2 |
| Calendaring product width | mm | 500 | 920 | 1000 | 1100(1400) |
| Driving motor power | KW | 7.5 | 45 | 55 | 75/25 |
| Overall Size | mm | 2570×740×1500 | 5550×1640×2120 | 6350×1410×2385 | 6900×1910×2750 |
| Weight | kg | 3200 | 14000 | 18000 | 17000 |
Main Features:
1. The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.
2. While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.
3. Roller space can be adjusted both by manual or electric mode.
4. Roller bearings' lubricating can adopt drier oil or dilute oil.

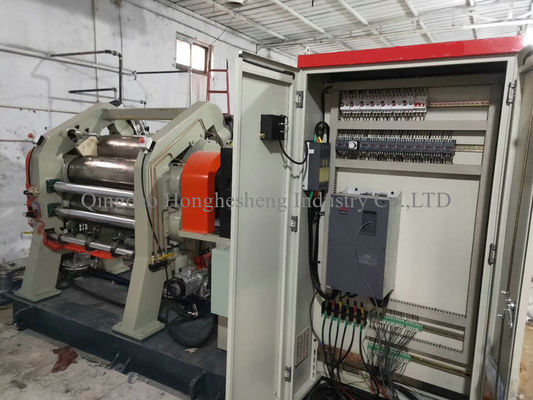

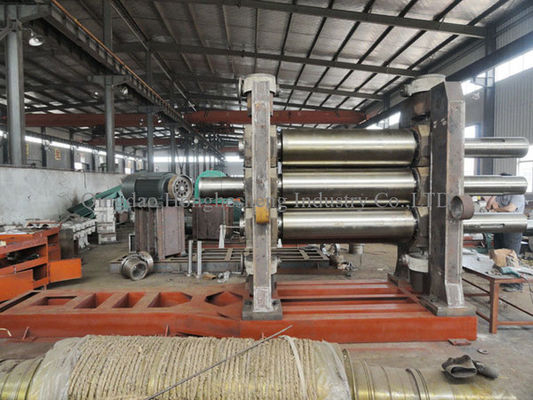

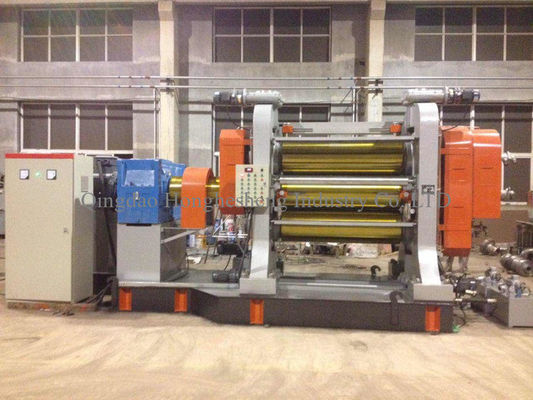

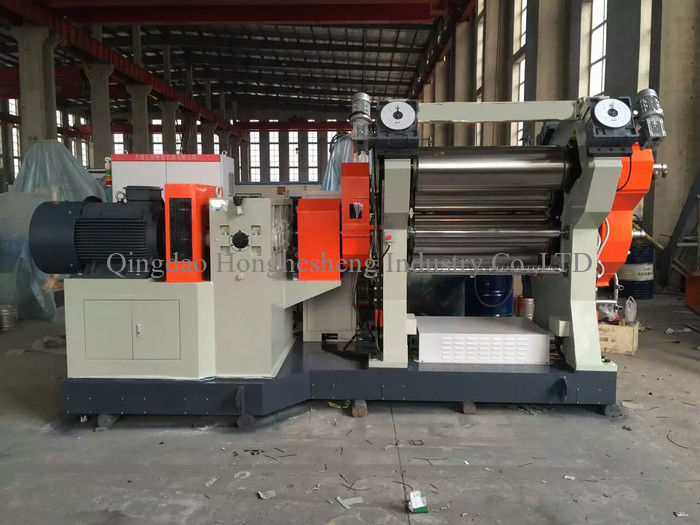

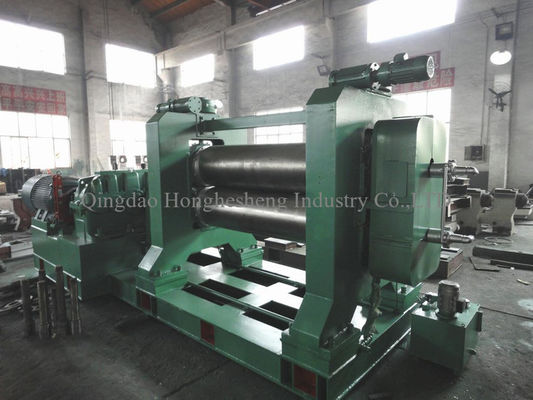

Detailed picture
