Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | 4 Roll Calender 230*630mm,4 roll calender 15KW,15000W Inner Tube Rubber Calender |
||
Inner Tube Rubber Four Roll Calender Machine
introduction
The 4-roll calender offers the advantage of working air out of the rubber more thoroughly and gets uniform thickness of film or sheet. It can also be used to coat the rubber film with single or both sides of textile operation.In the calendering process, fabric and rubber or plastic material is passed through a series of rollers to flatten, smooth and commingle the two or more materials. The more rollers are, the more rolling, and more effectiveIt is kind of precise and durable rolling equipments with simple operation, high precision, and good effect
Technical Specification
| Item |
XY-4L 630 XY-41 630 XY-4L 630 |
XY-4F 1120A | XY-4F 1400 | XY-4 F 1500 | XY-4 F 1730 |
| Roll Diameter(mm) | 230 | 360 | 400 | 450 | 610 |
| Working length(mm) | 630 | 1120 | 1400 | 1500 | 1730Minb |
| Min product thickness(mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 |
| Product width(mm) | 100-500 | 500-920 | 1200 | 1250 | 1500 |
| Motor power(kw) | 15 | 55/18.3 | 75/25 | 100/33.3 | 160 |
| Weight(t) | 48 | 14.65 | 18.65 | 33.5 | 62 |
Calendered rubber and polymer / fabric sheeting is used in a broad range of industries, with each application having its own specific requirements. Lanhang broad experience and knowledge insures that the calendered material will satisfy your application needs. Over the years, we have serviced almost every major rubber-related industry.

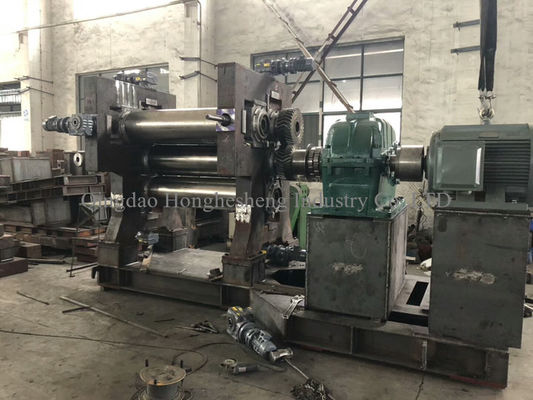

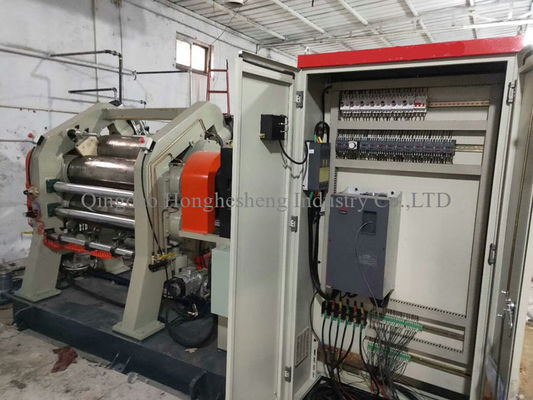

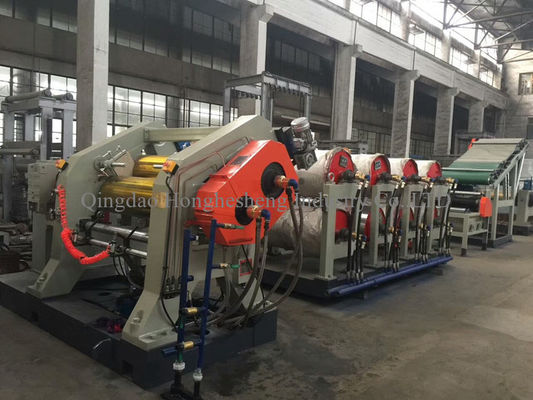

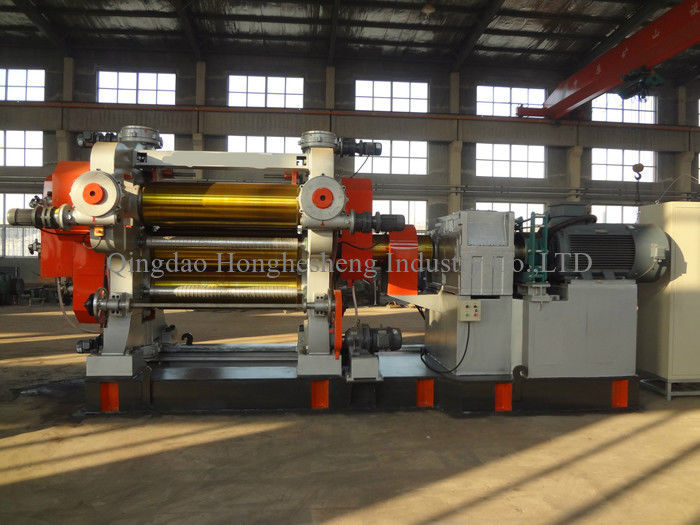

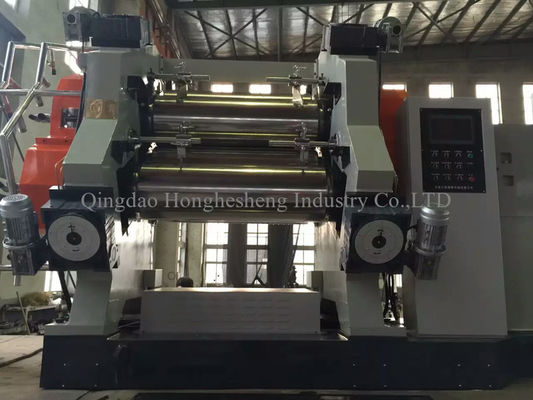

Detailed picture
