Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | 710mm 4 Roll Rubber Calender Machine,230mm 4 roll rubber calender machine,4 roll calender machine |
||

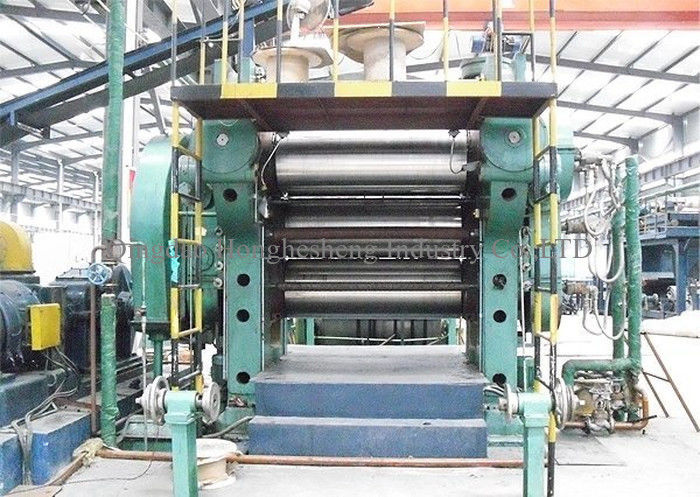

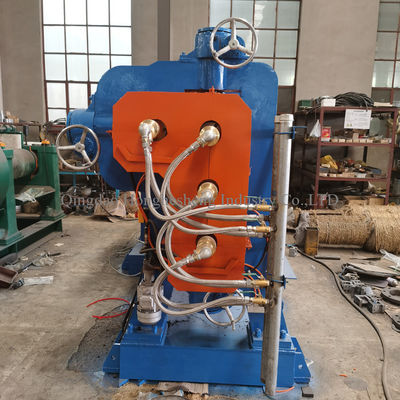

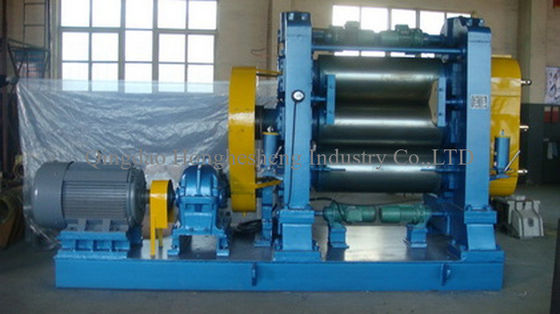

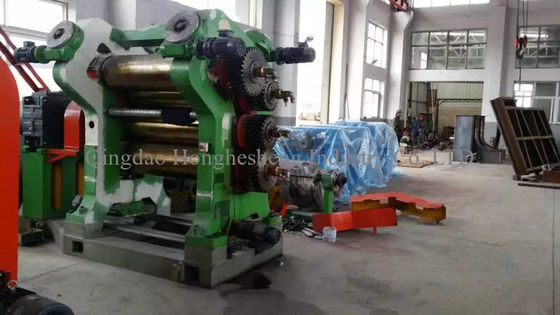

Inner Tube Rubber Four Roll Calender Machine
Wechat / Whats App:+8618364237330
introduction
The 4-roll calender offers the advantage of working air out of the rubber more thoroughly and gets uniform thickness of film or sheet. It can also be used to coat the rubber film with single or both sides of textile operation.
In the calendering process, fabric and rubber or plastic material is passed through a series of rollers to flatten, smooth and commingle the two or more materials. The more rollers are, the more rolling, and more effective.
It is kind of precise and durable rolling equipments with simple operation, high precision, and good effect
Top sale Best sell Four - roll calender for rubber tires for automobile tires machine
| Model/Item |
XY-3I 230x630 |
XY-3I 360x1120 |
XY-3I 400x1400 |
XY-3I 450x1500 |
XY-3I 610x1730 |
XY-3I 710x2130 |
| Roll Diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll Working Length(Mm) | 630 | 1120 | 1400 | 1500 | 1730 | 2130 |
|
Middle-Roll Linear Speed (m/min) |
0.8-8 | 3-20 | 3-26.39 | 2.62-26.2 | 5.4-54 | 8-50 |
| Adjusting Nip Range(mm) | 0-7 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
| Product Thickness (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 |
|
Overall Dimensions LXHXW(mm) |
3168 | 6500 | 6500 | 7420 | 7010 | 7650 |
| 890 | 1500 | 1500 | 2200 | 3950 | 4560 | |
| 1830 | 2440 | 2440 | 2900 | 3730 | 4080 |
