Product Details:
|
| Model: | XY-3I 1200 XY-3I 1500 | Roll Diameter (mm): | 450mm |
|---|---|---|---|
| Roll Working Length (mm): | 1200(1500)mm | Roll Speed Ratio: | 1:01:01 1:1.5:1 |
| Middle-roll Linear Speed (m/min): | 8.36-25.08 | Adjusting Nip Range (mm): | 0-6 |
| High Light: | 450x1500mm Rubber Calender Machine,ISO Rubber Calender Machine,CE 3 Roll Calender Machine |
||

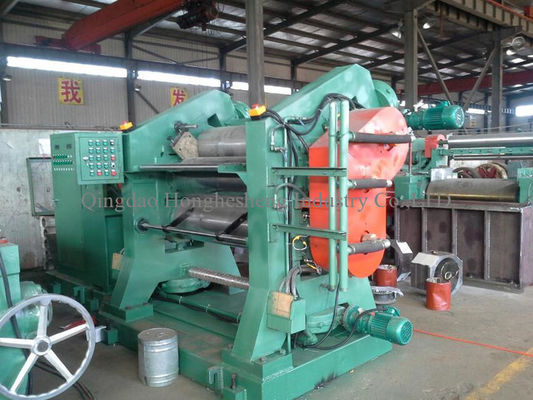

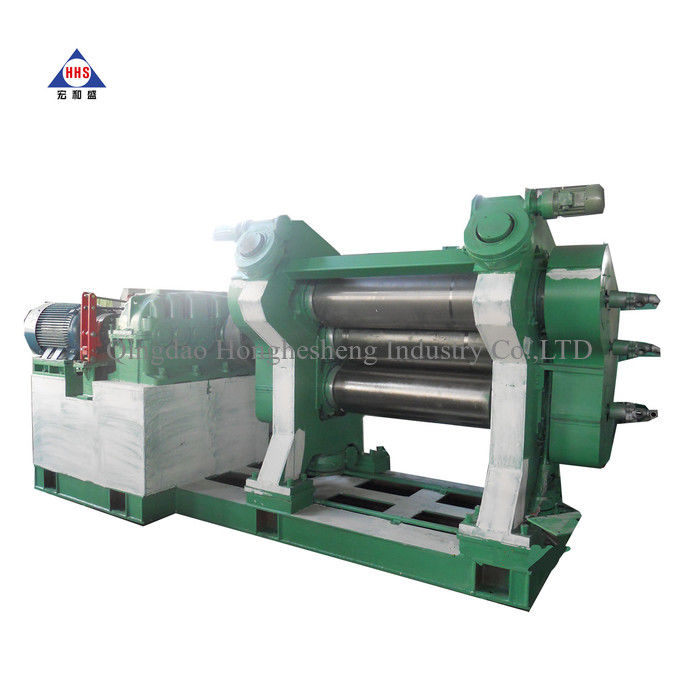

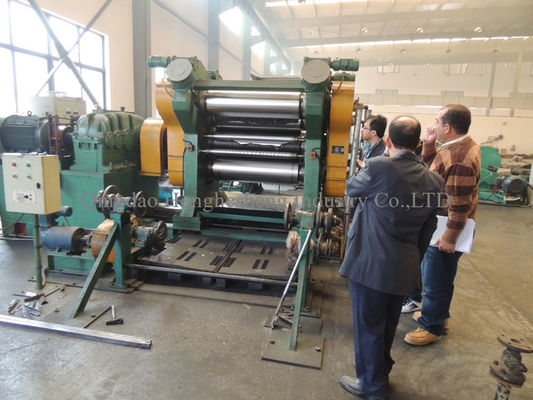

Three-Roller Rubber Calendering Machine Price / Rubber Calender Machine
1. Usage:
the calender is mainly used for cord, canvas and fabric frictioning cord single or double-coating with one time connectively as well as stock sheeting etc.
technial specification:
2 Product Description
| Model | XY-3I 630 | XY-3I 1120A XY-3 1120A XY-3l1120A |
XY-3I 1400 | XY-3I 1200 XY-3I 1500 |
XY-3I 1730 | XY-3I 2130 |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll working length (mm) | 630 | 1120 | 1400 | 1200(1500) | 1730 | 2130 |
| Roll speed ratio | 1:01:01 1:1.42:1 |
1:01:01 0.733:1:1 0.733:1:0.733 |
1:01:01 1:1.383:1.383 1:1.383:1 |
1:01:01 1:1.5:1 |
1:01:01 1:1.4:1 |
1:01:01 1:1.48:1 |
| Middle-roll linear speed (m/min) | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 | 5.4-54 | 8-50 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 |
| Min.Calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 |
| Calendering product width (mm) | 100-500 | 500-920 | 1200 | 1100(1400) | 1500 | 1900 |
| Motor power (kw) | 7.5 | 40/13.3 | 55/18.3 | 75/25 | 132 | 185 |
| Overall dimensions (mm) |
2570×740× 1500 |
5550×1640× 2120 |
6500×1500× 2440 |
7120(7420)×2200× 2900 |
7010×3950× 3730 |
7650×4560× 4080 |
| Weight (kg) | ~4200 | ~12750 | ~26000 | ~27000 | ~52000 | ~67000 |
3. Features
1: The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
2: The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
3: The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.
