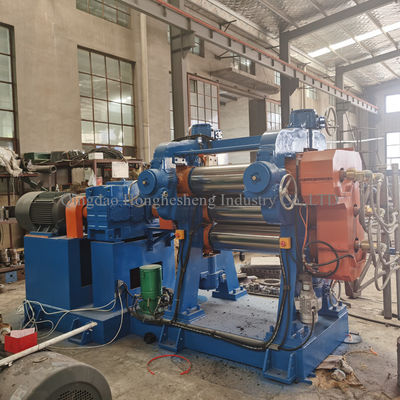

250×720mm Three Roll Rubber Calendering Machine For Rubber Sheet

rubber calender is used for rubber (plastic)calendering , precisely sheeting ,textile fabric fractioning ,double side coating , sheet laminating and so on

1) The bedplate is whole model, installation convenience.

2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.

3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.

4) Full range of bending deflections is optional including middle height, inflection and axis crossing.

5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.

6) Roller arrangement can be "I" type, "F" type, "Z" type, "L" type and "invert L" type.

7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

8) Perfect emergency stop device can ensure the safety of person and equipment.

We may design and produce it as per customers' requirements, equip various accessories, composing combined product line. Below is the main parameters:
