Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Video Outgoing-ins: | Provided | Warranty: | 3 Years |
| Core Components: | PLC, Engine, Gearbox, Motor, Gear, Pump | Dimension(L*W*H): | 3500*3200*2800mm |
| Certification: | ISO9001:2008/CE | Weight (KG):: | 8000 Kg |
| Applicable Industries: | Rubber Machine | Roll Material: | Chilled Cast Iron |
| High Light: | HHS Automatic rubber calendering machine,rubber calendering machine 252mm*720mm,rubber calendars 22KW |
||

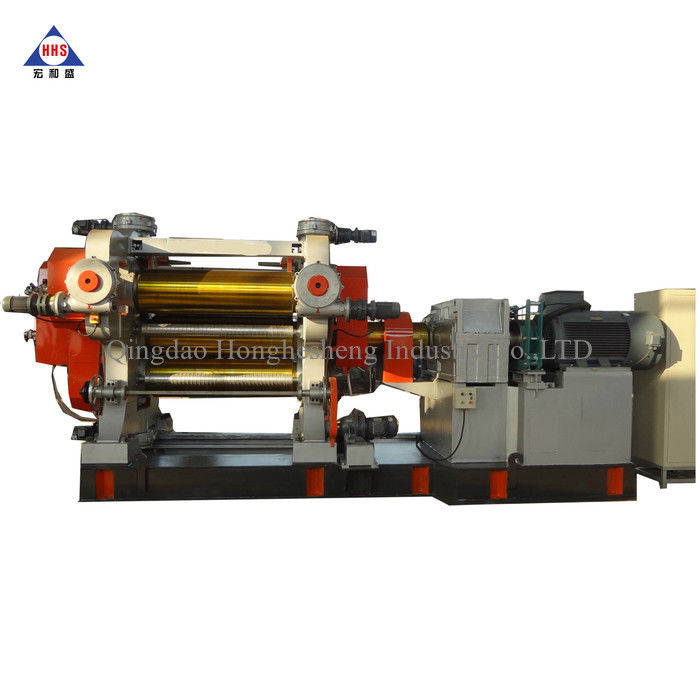

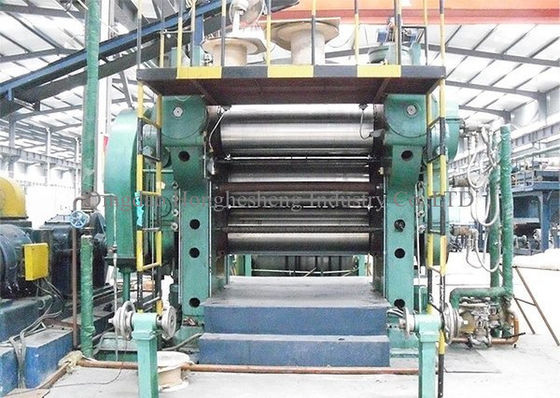

automatic rubber calender machine /rubber calending machine
Product description
HHS designs and manufactures complete range of rubber calenders with 2-4 rollers and width 250-2500mm for rubber industry to meet the very toughest production challenges, 4-roll "S" arrangement represents the heart of the calender.
Our calenders, furthermore, through shifting of rolls, roll bending, cross-axis and pre-loading, can be enriched by the most advanced automatic control and adjustment systems for thickness and profile of the film. These mechanisms, can be integrated with electronics, in order to offer calendering process control by gathering and automatically adjusting all precision production parameters. For the production of tires, in the end, the different types of plant or configurations is determined by the specific rubberizing technologies.
1. Technical parameters of Rubber Calender Machine, Four Roll Calendering Line
| Model | XY-230*630 | XY-252*720 | XY-360*1120 | XY-400*1200 | XY-450*1400 | XY-610*1730 |
| roller diameter | 230 | 252 | 360 | 400 | 450 | 610 |
| roller working length | 630 | 720 | 1120 | 1200 | 1400 | 1730 |
| roller ratio | 1:1:1/1:1.2:1 | 1:1:1 | 1:1:1 | 1:1:1 | 1:1:1 | 1:1:1 |
| middle roll linear speed | 0.8-8 M/MIN | 2-15.9 | 3-20 | 3-26.39 | 2.62-26.62 | 5.4-54 |
| Min calendering thickness | 0.2MM | 0.2MM | O.2MM | 0.2 | 0.2 | 0.15 |
| calender product width | 500 | 550 | 920MM | 1200 | 1250 | 1500 |
| motor | 7.5 KW | 22 KW | 45KW | 55 | 75 | 160 |

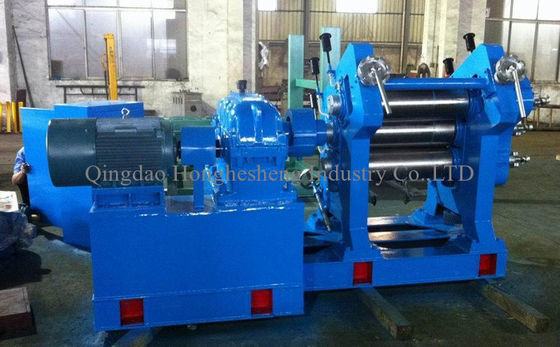

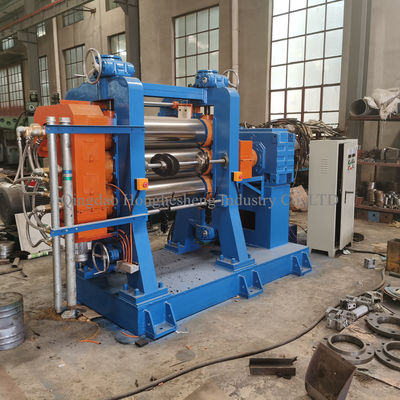

2. Features of Rubber Calender Machine, Four Roll Calendering Line
Calender machine Roller: is made of Chilled Cast Iron alloys, whose work surface has high Calender machine hardness,wear-resistance and durable life.
Calender machine Rollers' gap adjustment: manual or electric mode
Calender machine Roller bearings' lubrication: dry oil or thin oil by manual or electric mode
Calender machine Bearing bush: nylon sleeve,copper sleeve or double row spherical roller bearing
Calender machine Motor: ordinary or frequency motor
Calender machine Reducer: hard tooth surface reducer
1) The bedplate is whole model, installation convenience.
2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.
3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.
4) Full range of bending deflections is optional including middle height, inflection and axis crossing.
5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.
6) Roller arrangement can be "I" type, "F" type, "Z" type, "L" type and "invert L" type.
7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
8) Perfect emergency stop device can ensure the safety of person and equipment.

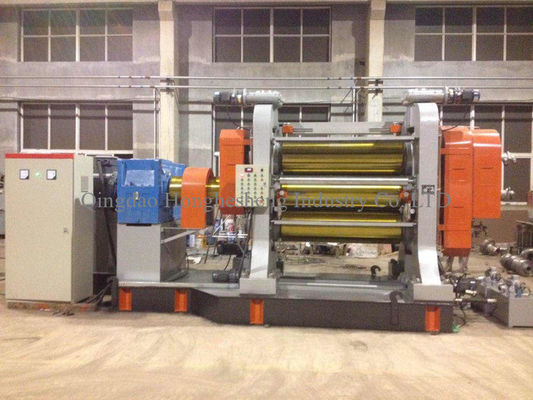

In order to adapt to a wider range of product specifications and qualities such as rigidity and thickness, QINGDAO OULI MACHINE offers our F series, I series and S series rubber calenders with 2-4 rollers. Every single model is specifically designed to meet detailed product requirements and optimal output.
a. Equiped with "SIEMENS" "MITSUBSHI" "CHINT",etc.
b. Imported PLC auto control,Safe, Seliable,Stable.
c. Patented design, energy conservation.
a. Hardened tooth-surface reducer.
b. Higher transmission efficiency; Lower noise; Longer Service Life.

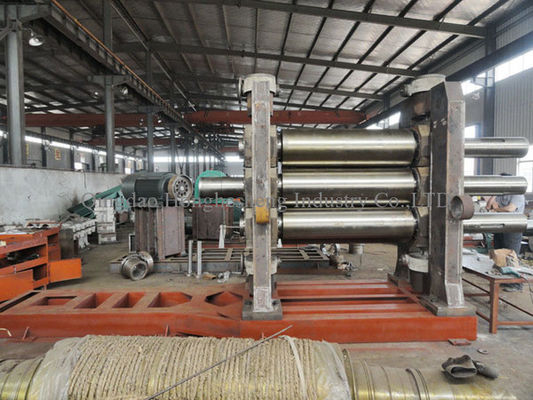

a. Whole casting framework,base frame welded by high quality steel,firm and durable.
b. Whole processed by pentahedron,machining center to ensure accuracy.
a. Made of chilled cast iron with vanadium and titanum alloys.
b. Working surface Hardness:HS72±2
c. Drilled or Hollow Structure
a. PLC Control the temperature.
b. High precision temperature control Heating and cooling fastly.
Combine Mechanical with hydraulic type nip adjust,high-precision,ensure produce thickness.
Step 1: Machine main body and accessories rust preventing oil treatment.
Step 2: Wooden Carton or stretch film packing.
