Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | 280KW Rubber Calender Machine,15KW 3 roll calender machine,250mm calender machine for rubber |
||

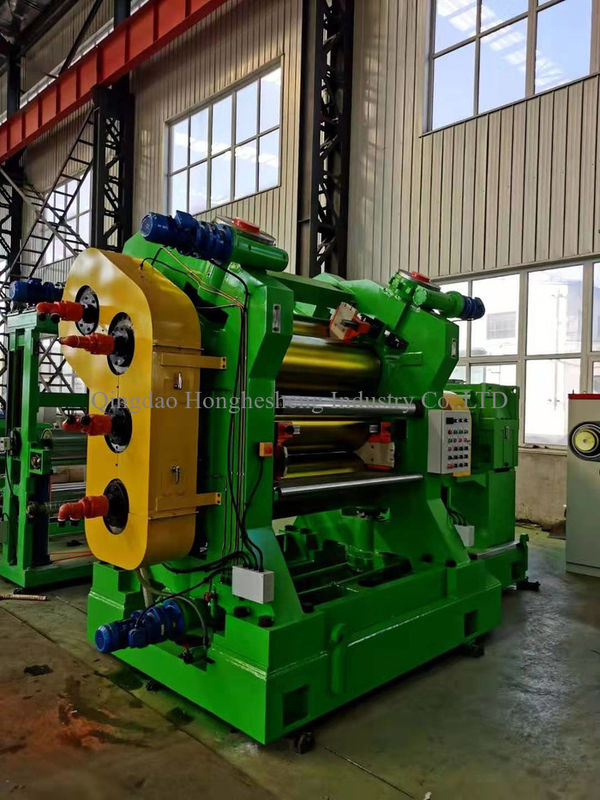

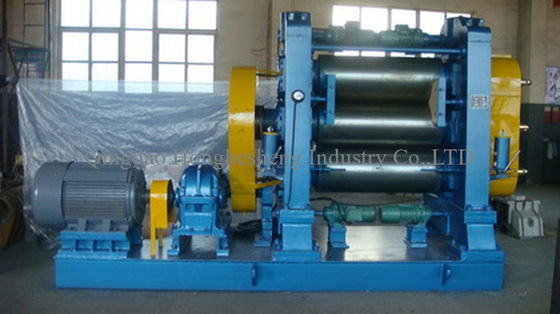

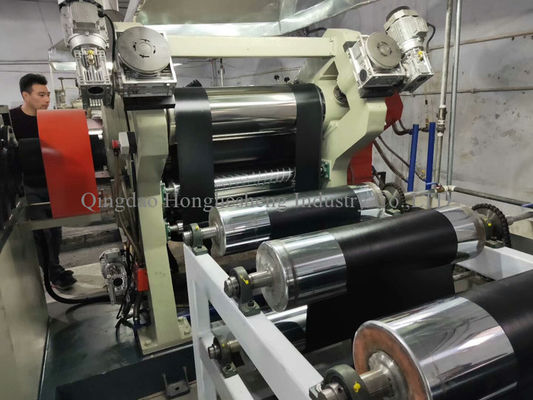

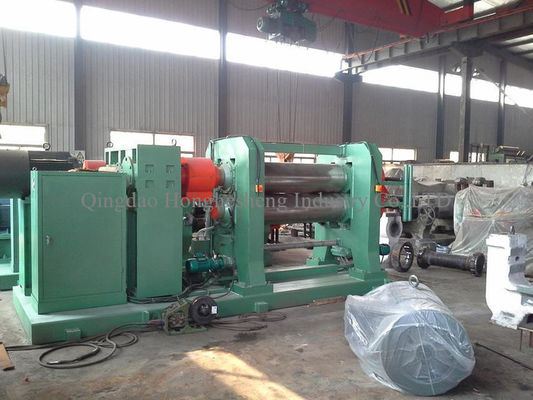

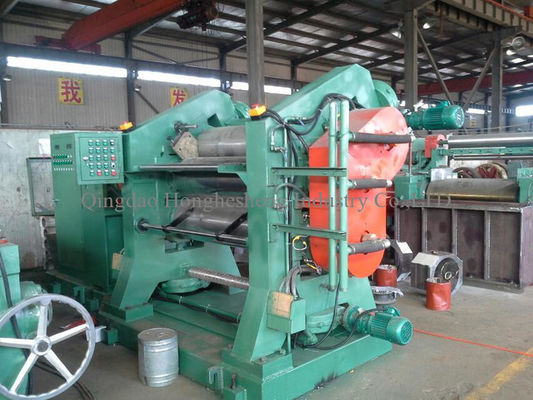

Rubber Sheet Calendering Machine / Rubber Calender Machine
Product Description
We can make 2 rolls, 3rolls and 4 rolls; Φ250-Φ800mm; I type, r type, L type and s type calenders.
1. Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
7. The calendar is equipped with rolling bearings.
8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.
product parameter
| Model | XY-4 630 | XY-3I 1120A XY-3 1120A XY-3l1120A |
XY-3I 1400 | XY-3I 1200 XY-3I 1500 |
XY-3I 1730 | XY-3I 2130 |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll working length (mm) | 630 | 1120 | 1400 | 1200(1500) | 1730 | 2130 |
| Roll speed ratio | 1:01:01 1:1.42:1 |
1:01:01 0.733:1:1 0.733:1:0.733 |
1:01:01 1:1.383:1.383 1:1.383:1 |
1:01:01 1:1.5:1 |
1:01:01 1:1.4:1 |
1:01:01 1:1.48:1 |
| Middle-roll linear speed (m/min) | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 | 5.4-54 | 8-50 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 |
| Min.Calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 |
| Calendering product width (mm) | 100-500 | 500-920 | 1200 | 1100(1400) | 1500 | 1900 |
| Motor power (kw) | 7.5 | 40/13.3 | 55/18.3 | 75/25 | 132 | 185 |
| Overall dimensions (mm) |
2570×740× 1500 |
5550×1640× 2120 |
6500×1500× 2440 |
7120(7420)×2200× 2900 |
7010×3950× 3730 |
7650×4560× 4080 |
| Weight (kg) | ~4200 | ~12750 | ~26000 | ~27000 | ~52000 | ~67000 |
a. Equiped with "SIEMENS" "MITSUBSHI" "CHINT",etc.
b. Imported PLC auto control,Safe, Seliable,Stable.
c. Patented design, energy conservation.
a. Hardened tooth-surface reducer.
b. Higher transmission efficiency; Lower noise; Longer Service Life.
a. Whole casting framework,base frame welded by high quality steel,firm and durable.
b. Whole processed by pentahedron,machining center to ensure accuracy.
a. Made of chilled cast iron with vanadium and titanum alloys.
b. Working surface Hardness:HS72±2
c. Drilled or Hollow Structure
a. PLC Control the temperature.
b. High precision temperature control Heating and cooling fastly.
Combine Mechanical with hydraulic type nip adjust,high-precision,ensure produce thickness.
Step 1: Machine main body and accessories rust preventing oil treatment.
Step 2: Wooden Carton or stretch film packing.
