Product Details:
|
| Place Of Origin: | Shandong, China | Model Number: | XPG-600 |
|---|---|---|---|
| Condition: | New | Brand Name: | HHS |
| Voltage: | 380V | Suitable Sheet Size: | 600-900mm |
| Dimension(L*W*H): | 14850/18600*1880*3100mm | Weight: | 20T |
| Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Power: | 20-26kw |
| Color: | As Customer Require | Line Speed: | 5~25m/min |
| Maximum Cutting: | 450mm | Length Tolerance Of: | <3mm |
| High Light: | Batch Off Cooler 380V,600mm Batch Off Cooler,900mm Rubber Sheet Cooler |
||

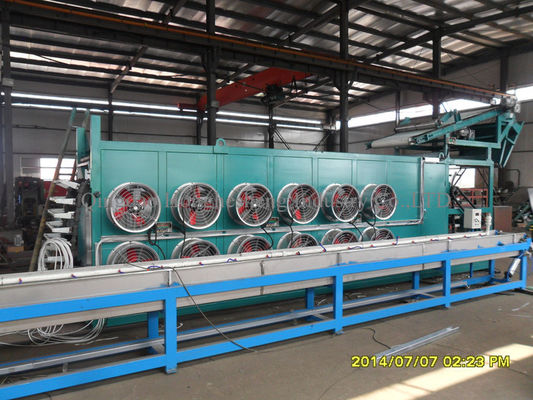

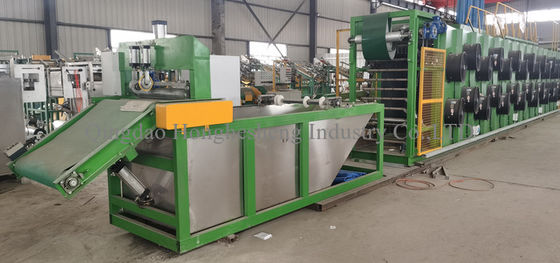

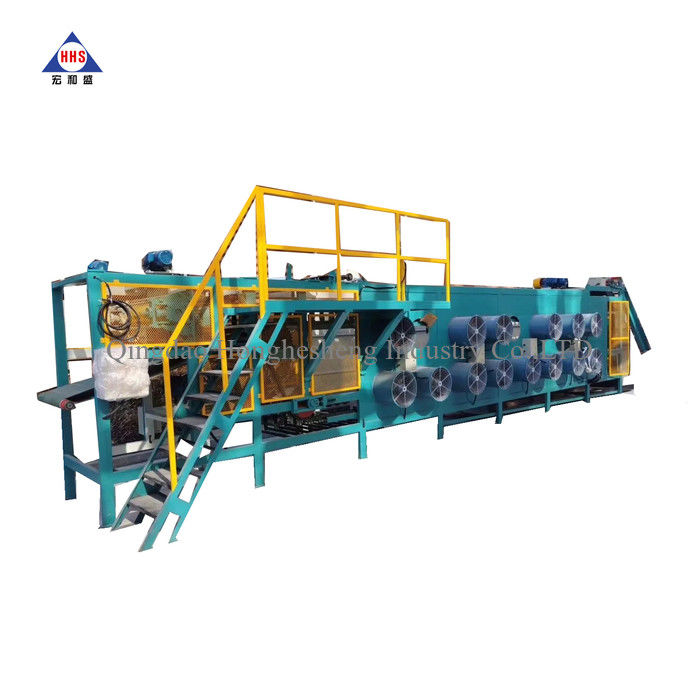

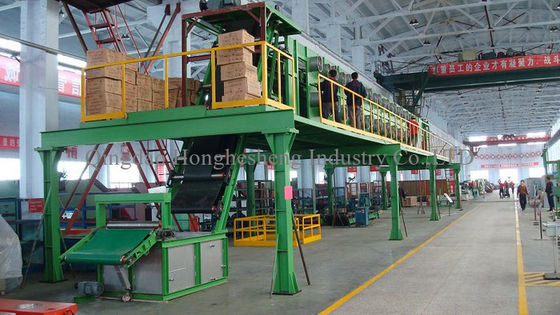

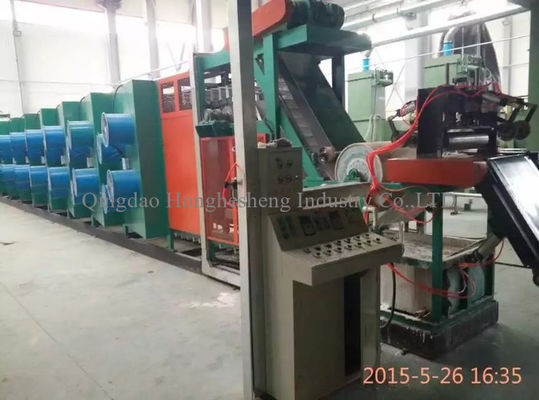

rubber sheet batch off cooler line
Structure Features
1 Conveyor belt is NBR light conveyor belt;
2 Cold roll adopts motor reducer by chain transmission, inverter to adjust speed; The surface of roll adopts 201 stainless steel; The surface of exposed roll by electroplating and antirust processing.
3 With functions of crisps traction belt.
Electric control system
1. All the motor controlled by frequency converter, and with frequency conversion synchronous regulator to adjust speed, at the same time can realize a key control inorganic speed.
2. Before and after the operation box are set manually stop button, and can start to stop at the same time.
Technical Parameters
| Main parameters &Model | XPG-900 |
| The biggest width of film | 900mm |
| The thickness of film | 0.2-4mm |
| The size of Stainless steel roller | 570x1000mm |
| Number of rolls | 7 or 9 rolls |
| Cooling rolls linear velocity | 4-25m/min |
| Biggest linear velocity winding | 4-25m/min |
| Fan parameters | 250Wx3set |
| Motor powe | (5.5+1.5+1.5)Kw |
| Overall dimensions | 5800x2000x1950mm |
