Product Details:
|
| Colour: | All | About Weight: | 4.8t-126t |
|---|---|---|---|
| Motor Power: | 15kw-280kw | Roller Diameter: | 230-810 |
| Advantage: | High Efficiency | ||
| High Light: | Three Roll Rubber Calender Machine,Two Roll Rubber Calender Machine,Four Roll Rubber Calendering |
||
Good Quality Two Roll Rubber Calender Machine , Three Roll Rubber Calender , Four Roll Rubbercalendering
Introduction
Two roll rubber calender is used for calendering of rubber or plastics, fabric fraction and coating, sheeting and composite of rubber or plastics.
Parameter
| Parameter/model | XY-2-250 | XY-2-360 | XY-2-400 | XY-2-450 | XY-2-560 | XY-2-610 | XY-2-810 |
| Roll diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 |
| Roll length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 |
| Ratio of rubber speed | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Roll speed (m/min) | 1.2-12 | 3-20.2 | 4-23 | 2.5-24.8 | 2-18.7 | 4-36 | 2-20 |
| Nip adjust range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 |
| Motor power (KW) | 15 | 37 | 45 | 55 | 75 | 90 | 160 |
| Weight (KG) | 5000 | 11500 | 12500 | 14000 | 24000 | 30000 | 62000 |

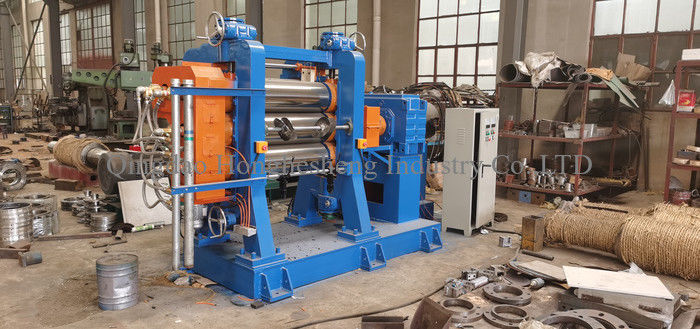

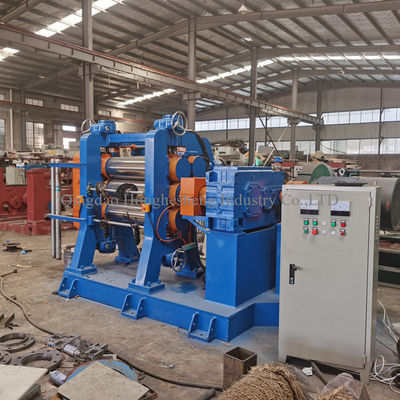

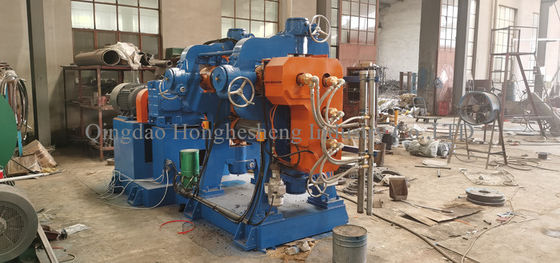

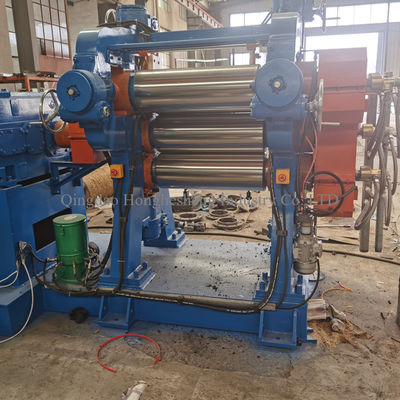

Detailed picture
