Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Output (kg/h): | 320kg/hour | Screw Diameter: | 90 Mm |
| L/D: | 20:1 | Voltage: | 380V/50HZ Or As Your Requirements |
| Dimension(L*W*H): | 3200*1200*1620mm | Power (kW): | 75 |
| Weight (KG): | 3500 KG | Certification: | CE; ISO |
| High Light: | 20D Rubber Extrusion Machine,Rubber Extrusion Machine 320kg/Hour,90mm rubber extrusion equipment |
||

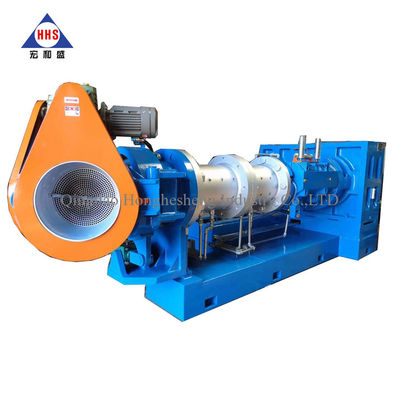

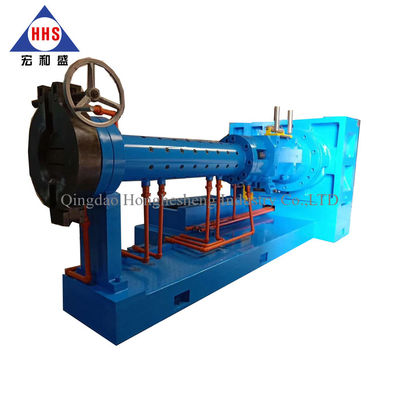

BAINA 90mm20D Cold Feed Rubber Extrude Machine Rubber Extrusion Machine Rubber Extruder
Our production line has the model:
| Item | Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3 M high-temperature forming machine | 1 |
| 3. 8.9 m 12KW microwave vulcanization oven | 1 |
| 4. 8.9 M Hot air vulcanization oven | 2 |
| 5. 4 m Cooling water tank with drying | 1 |
| 6. Traction machine | 1 |
| 7. 16 P Chiller | 1 |
| 8. PLC control | 1 |
Various types of basic parameters:
| Item |
Diameter of screw (mm) |
L/D ratio |
Speed of screw (r/min) |
Driving power (KW) |
Max output of production (kg/h) |
Weight (kg) |
|
150mm 20D (vacuum) |
150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
|
120mm 20D (vacuum) |
120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
|
90mm 20D (vacuum) |
90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
|
75mm 20D (vacuum) |
75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
