Product Details:
|
| Place Of Origin: | Shandong, China | Plastic Processed: | PVC, WPC, PP PE PVC WPC |
|---|---|---|---|
| Screw Diamete: | 65-200mm | Screw L/D Ratio: | 22 |
| L/D: | 4-4.35 | Voltage: | 380V/50HZ Or As Your Requirements |
| Dimension(L*W*H): | 2300x2500x3200 | Power (kW): | 80 |
| Weight (KG): | 3000 KG | Certification: | CE; ISO |
| High Light: | CE Silicone Rubber Extruder Machine,silicone rubber extruder machine Xjd120,silicone extruder 380V 50HZ |
||

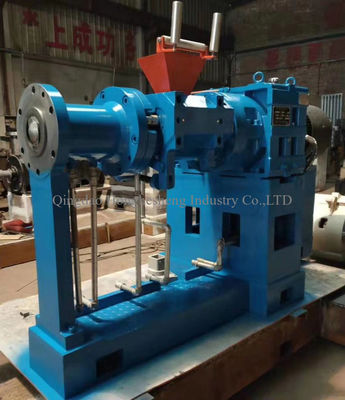

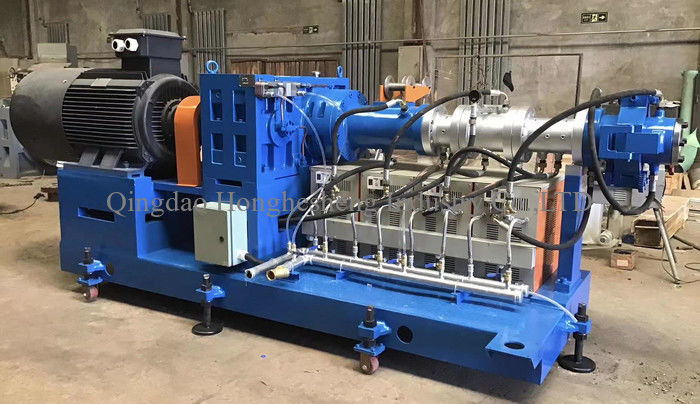

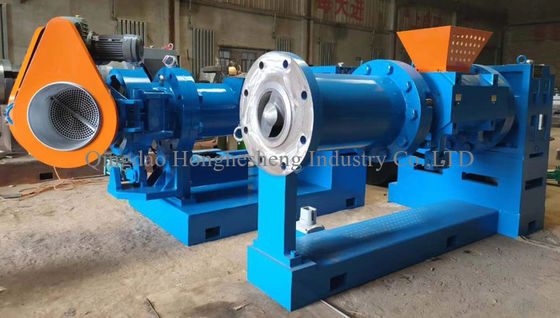

Silicone Rubber Extruder Machine With Professional Manufacturer In China Xjd-120
The screw and the cylinder are made of the specially-nitrated steel 38CrMoAl with high hardness and good abrasive resistance.
The heads and the machine body, as well as the central-hollowed screw, are accessible for hot steam or cold water to regulate the temperature of the processing rubber materials.
| model | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 |
| diameter of screw(mm) | 65 | 85 | 115 | 150 | 200 |
| ratio of screw(L/D) | 1:4 | 1:5 | 1:4.8 | 1:4.4 | 1:4.4 |
| max speed of screw(r/min) | 20-47 | 27-80 | 20-60 | 27-81 | 22-67.2 |
| power of main motor(kw) | 7.5 | 17 | 22 | 40 | 55(75) |
| max output(kg/h) | 50-80 | 62-270 | 100-420 | 700 | 1400 |
| overall size(mm) | 1600x675x1208 | 2050x735x1275 | 2300x800x1370 | 3585x814x1470 | 4549x1140x1750 |
| weight(kg) | 1500 | 2000 | 3300 | 4500 | 7200 |
