65mm 33D Rubber Extruder Machine Plastic PVC PE PS ABS Pultrusion Machine

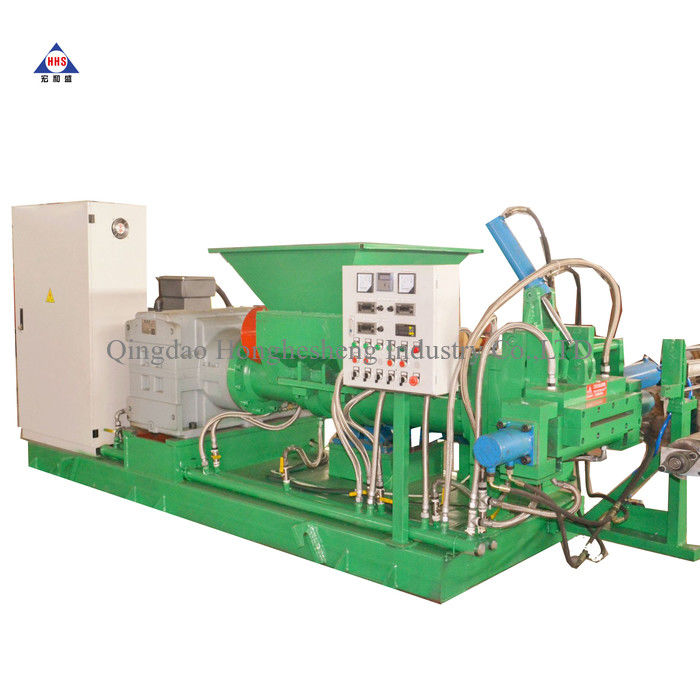

Large Image : 65mm 33D Rubber Extruder Machine Plastic PVC PE PS ABS Pultrusion Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HHS
Certification:	CE ISO
Model Number:	YF180-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD:20000-80000 /SET
Packaging Details:	wood package /20-40 container
Delivery Time:	20 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	50 sets/month

Contact Now

65mm 33D Rubber Extruder Machine Plastic PVC PE PS ABS Pultrusion Machine

Description

Place Of Origin:	Shandong, China	Plastic Processed:	PVC
Screw Diamete:	65mm	Screw L/D Ratio:	33:1
Screw Speed (rpm):	39 Rpm	Voltage:	380V/50HZ Or As Your Requirements
Dimension(LWH):	20000x2000x1800	Power (kW):	60
Weight (KG):	4000 KG	Certification:	CE; ISO
High Light:	33D Rubber Extruder Machine , 65mm Plastic Rubber Extruder Machine , PS ABS Pultrusion Machine

Good Price Plastic PVC PE PS ABS Pultrusion Machine Manufacturer

16-1000 mm Plastic PVC Water Supply Drainage Pipe Electric Protection Tube Making Machine

We are very professional in producing the PVC pipe production line. We have stock in our factory, you can come to visit at any time.The whole production line consists of the following seven parts:

NO.	Name	Quantity
1	Conical double screw extruder with automatic feeding system	1set
2	Mould	1set
3	Vacuum calibrating and cooling tank	1set
4	Haul-off machine	1set
5	Cutting machine	1set
6	Stacker	1set
7	Belling machine (optional)	1set

Different models of production lines can produce PVC pipes with different diameter.

Extruder Model	Pipe Diameter (mm)	Production Capacity (kg/h)	Production Speed (m/min)	Total Power (kw/h)
SJSZ51/105	16~63	120	15	45
SJSZ55/110	50~160	180	5	55
SJSZ65/132	75~250	250	4	75
SJSZ80/156	110~315	450	2	105
SJSZ92/188	315~630	600	1	205
SJSZ105/220	500-800	1200	1	305


The raw material of PVC pipes is a mixture of the following materials.

Raw Material	Percentage
PVC resin powder	65%-90%
Calcium powder	0-26%
CPE	4%-6%
Compound stabilizer, Titanium dioxide, Stearic acid, Paraffin, PE wax, etc.	5%

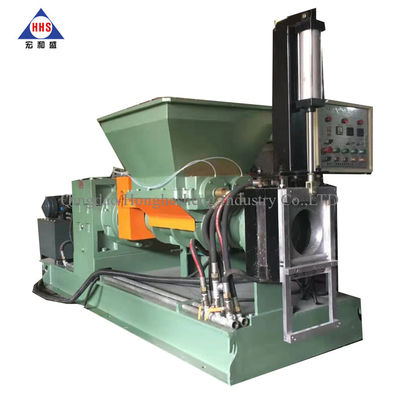

65mm 33D Rubber Extruder Machine Plastic PVC PE PS ABS Pultrusion Machine 0

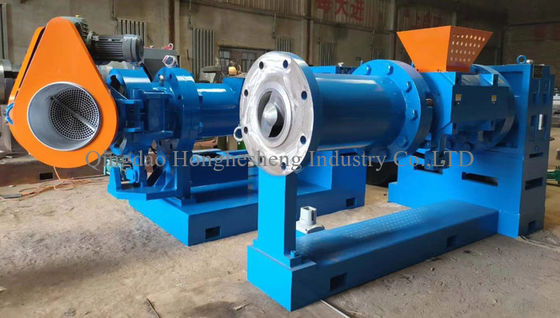

65mm 33D Rubber Extruder Machine Plastic PVC PE PS ABS Pultrusion Machine 4
