Product Details:
|
| Place Of Origin: | Shandong, China | Model Number: | XPG-800 |
|---|---|---|---|
| Condition: | New | Brand Name: | HHS |
| Voltage: | 380V | Suitable Sheet Size: | 600-900mm |
| Dimension(L*W*H): | 14850/18600*1880*3100mm | Weight: | 20T |
| Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Power: | 20-26kw |
| Color: | As Customer Require | ||
| High Light: | 12mm Rubber Sheet Cooling Machine,6mm Rubber Sheet Cooling Machine,Rubber Cooling Machine High Output |
||
High Output XGP Series Rubber Sheet Cooling Production Line / Rubber Sheet Cooling Machine / Batch Off Cooler
1. Usage
This machine is mainly used for Banbury mixing,plasticating through open mixing machine tabletting,or rubber sheet cooling,lamination and taking up ater extrudering and tabletting with twin screw.
2. Struction

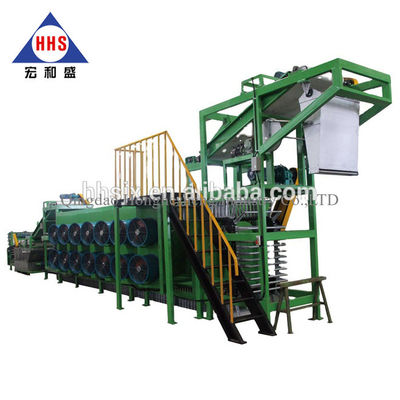

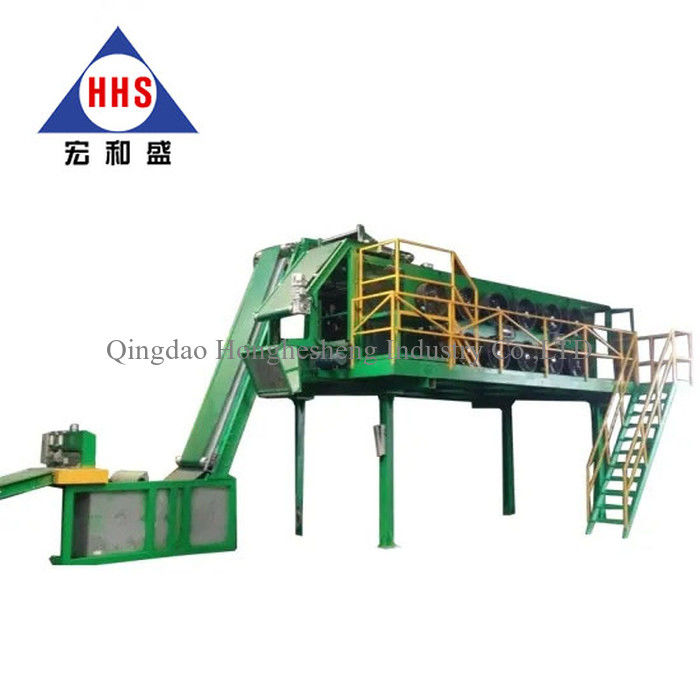

There are overhead and floor-standing these two types.Hanging frame is vertical rotation to force-air-cooling.Hanging rubber rod is driven by steping cylinder or motor reducer.It mainly contain the host and electrical controling system The host is composed of connector,printer and longitude cutting device,separant cooling,hoisting device,hanging sheet cooling,automatic
putting rubber device,weighing,rail,plateform and the supporting frame,etc.
The electric cabinet is made of main-controlbox and set a emergency button in the key position.
You can choose high and low configuration according to the actual situation.
The high configuration rubber sheet cooling production line is equipen with hydraulic automatic
putting and laminating device to make the stack tidy.The tidy rate can be up to 100%.
The material tray can automatic input and output three-position device,automatic picking rubber
device and automatic cutting device,realizing unmanned operation and high degree of automation.
3. Main Technical Specification
| Model Series | XPG-600 | XPG-800 | XPG-900 | ||
| Max. rubber sheet width | mm | 600 | 800 | 900 | |
| The thickness of the rubber sheet | mm | 4-10 | 4-10 | 6-12 | |
| Rubber sheeting temperature over room temperature after cooling | °C | Room temperature + 5 degrees Celsius | Room temperature + 5 degrees Celsius | Room temperature + 5 degrees Celsius | |
| Linear speed of taking-in conveyer | m/min | 11-22 | 0-26 | 3-35 | |
| Linear speed of sheet hanging bar | m/min | 1-1.26 | 1-1.26 | 1-1.26 | |
| Hanging height of the sheet hanging bar | mm | 1000 | 1200 | 1400 | |
| Number of cooling fans | Set | According to customers | 20-32 | 32-34 | |
| Total power | kW | 16 | 20-26 | 25-35 | |
| L | mm | 12400 | 14850/18600 | 18000/21750 | |
| Length | W | mm | 2130 | 1880 | 2300 |
| H | mm | 2990 | 3100 | 2980 | |
| Gross weight | t | 10 | 20 | 30 | |
