Product Details:
|
| Place Of Origin: | Shandong, China | Model Number: | XPG-600 |
|---|---|---|---|
| Condition: | New | Brand Name: | HHS |
| Voltage: | 380V | Suitable Sheet Size: | 600-900mm |
| Dimension(L*W*H): | 14850/18600*1880*3100mm | Weight: | 20T |
| Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Power: | 20-26kw |
| Color: | As Customer Require | Rubber Strip Hangin: | 0.117-2.3m/min |
| Max. Hanging Height: | 1400mm | ||
| High Light: | Batch Off Cooler For Rubber Sheet,Hanging Batch Off Cooler,Hanging Rubber Cooling Machine |
||

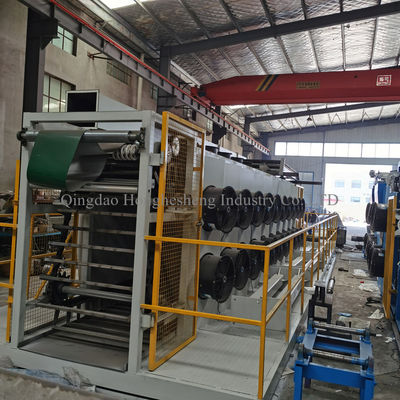

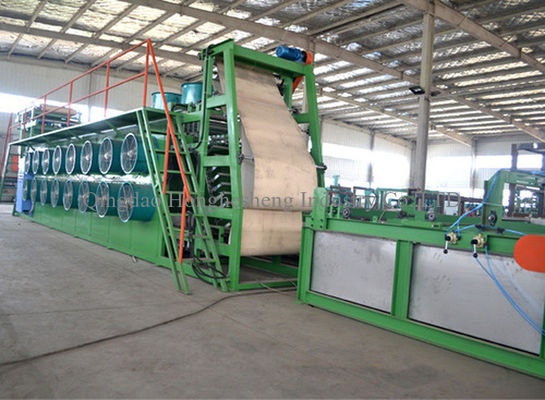

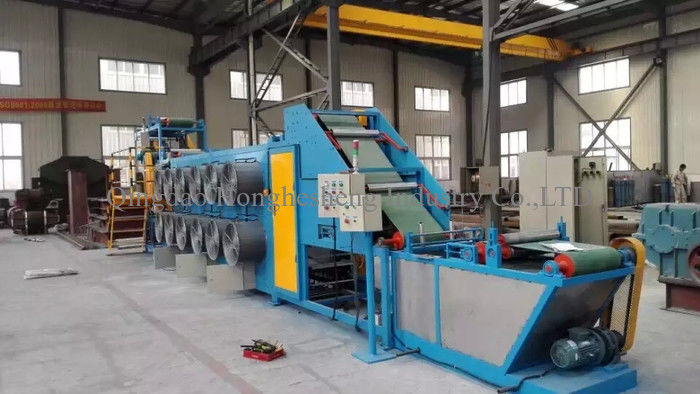

Hanging Type Rubber Cooling Machine / Batch Off Cooler Machine / Rubber Sheet Cooling Machine
1. Main uses
This machine is suitanble for mixer,refining the mixer tablets or twin-screw extrusion pressure after the rubber piece cooling and laminated and slice.
2. Structure features
Having raised to two kinds of structure and form, rack,forced air vertical again. Hung stem from step cylinder or motor reducer drive. Basically has two main electriccontrol system, the most. Host is divided again connector, printing, longitudinal cutting device,isolating agent cooling, improve device, cooling,automatic pendulum hanged piece rubber device, weighing,baluster, platform and supporting frame, etc. Control system by controlling box, and set up an emergencycontrol device among key points.
Users can choose according to the actual demand of high and low configuration. Film cooling line with high configuration of hydraulic automatic pendulum slice laminated rubber, plastic, COINS COINS neat rate than 100mm, Automatic feeding plate sod the input and output.Automatic device; up adhesive Automatic cutting device,can achieve unattended operation, high degree of automation.
3. Technical parameters
| Model | XPG-600 | XPG-800 | XPG-900 | ||
| Max. rubber sheet width | mm | 600 | 800 | 900 | |
| The thickness of the rubber sheet | mm | 4-10 | 4-10 | 6-12 | |
| Rubber sheeting temperature over room temperature after cooling |
°C | 10 | 15 | 5 | |
| Linear speed of taking-in conveyer | m/min | 3-24 | 3-35 | 4-40 | |
| Linear speed of sheet hanging bar | m/min | 1-1.3 | 1-1.3 | 1-1.3 | |
| Hanging height of the sheet hanging bar | m | 1000-1500 | 1000-1500 | 1400 | |
| Number of cooling fans | Set | 12 | 20-32 | 32-34 | |
| Total power | kW | 16 | 25-34 | 34-50 | |
Dimensions |
L | mm | 14250 | 16800 | 26630-35000 |
| W | mm | 3300 | 3400 | 3500 | |
| H | mm | 3405 | 3520 | 5630 | |
| Gross weight | t | ~11 | ~22 | ~34 | |
