Product Details:
|
| Place Of Origin: | Shandong, China | Plastic Processed: | PVC, WPC, PP PE PVC WPC |
|---|---|---|---|
| Screw Diamete: | 65-200mm | Screw L/D Ratio: | 22 |
| L/D: | 4-4.35 | Voltage: | 380V/50HZ Or As Your Requirements |
| Dimension(L*W*H): | 2300x2500x3200 | Power (kW): | 80 |
| Weight (KG): | 3000 KG | Certification: | CE; ISO |
| High Light: | Rubber Extruder Machine 200mm Dia,Rubber Extruder Machine 1500kg/H,2200kg/H extruder for rubber |
||

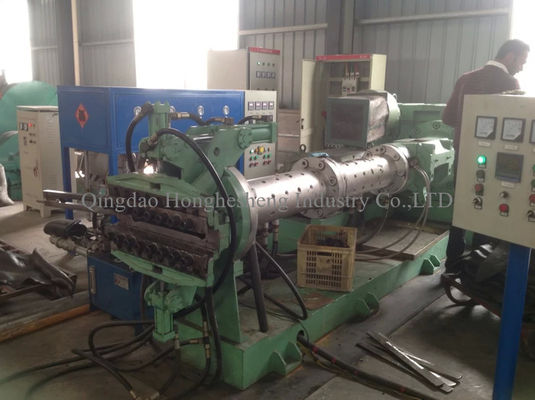

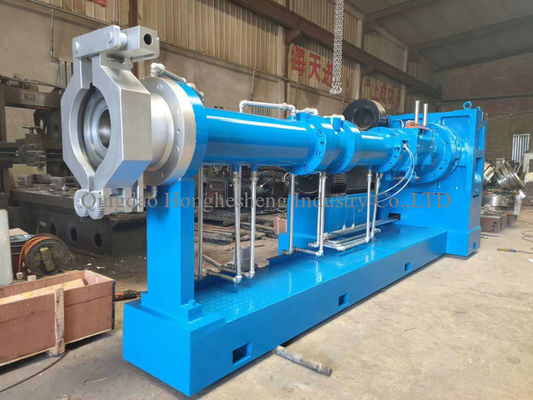

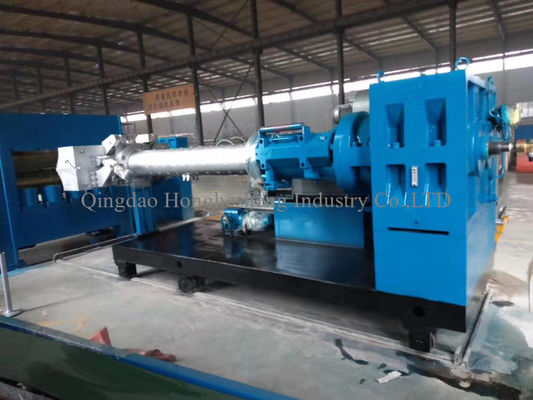

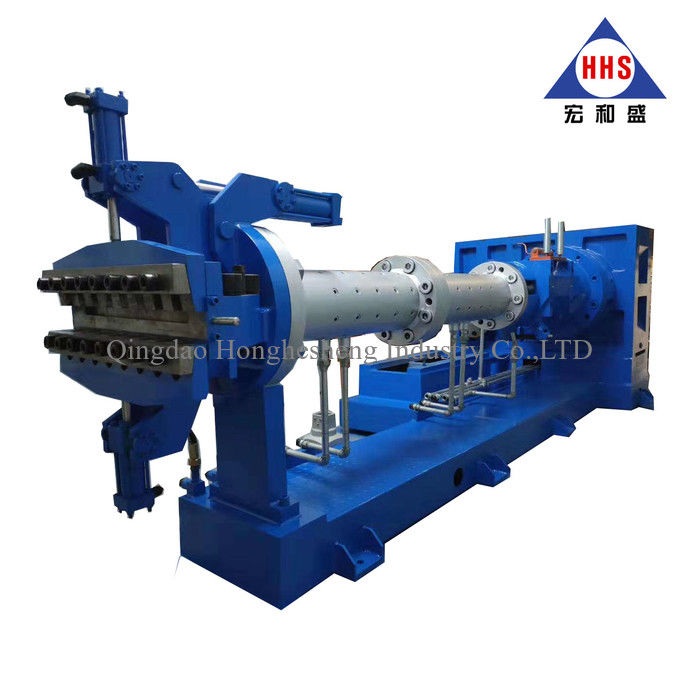

The cold feed rubber extruder is applicable for rubber or plastic products extruding(often been used to extrude pipe, sheet, strip, pellets, tire tread, inner tube, etc), straining( used to filtering impurities from rubber). The machine also can be used for plasticating, mixing and refining of rubber and plastics, and mixing of rubber and synthetic rubber.
1) The cold feed rubber extruder is simple structure ,easy in installation and maintenance.
2) The cold feed rubber extruder adopts advanced world famous brand components in hydraulic parts ,electric parts and operation parts.
3) The cold feed rubber extruder is energy saving, high productivity , good plasitcization and refined glue quality characteristic.
4) The cold feed rubber extruder can be equipped with various extrusion heads as required by users.
5) A machine body temperature measuring and indicating device is installed.The feeding zone is equipped
with side rolls for the enhancement of feeding capability.6) The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
7)The reducer has a forced lubrication unit,which is featured by high transmission efficiency,long service life and low noise.
8) The machine is driven by a variable-speed motor.
9) The side rolls are designed as side-open type for easy rubber removal.
10) ISO, CE, SGS, GOST certificate.
