Floor Type Batch Off Unit Cooler 26kw 380V PLC Controled

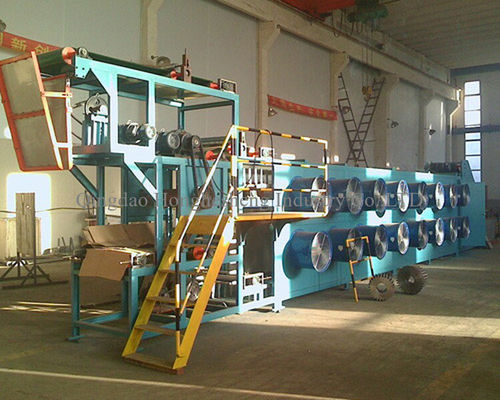

Large Image : Floor Type Batch Off Unit Cooler 26kw 380V PLC Controled

Product Details:

Place of Origin:	CHINA
Brand Name:	HHS
Certification:	CE ISO
Model Number:	XGP-600/ XGP-900

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD:8000-60000 /SET
Packaging Details:	wood package /20-40 container
Delivery Time:	35 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month

Contact Now

Floor Type Batch Off Unit Cooler 26kw 380V PLC Controled

Description

Place Of Origin:	Shandong, China	Model Number:	XPG-600
Condition:	New	Brand Name:	HHS
Voltage:	380V	Suitable Sheet Size:	600-900mm
Dimension(LWH):	14850/1860018803100mm	Weight:	20T
Certification:	ISO9001:2008	Warranty:	One Year
After-sales Service:	Engineers Available To Service Machinery Overseas	Power:	20-26kw
Color:	As Customer Require	Line Speed:	5~25m/min
Maximum Cutting:	450mm	Length Tolerance Of:	<3mm
High Light:	26kw Floor Batch Off Unit Cooler , 380V Batch Off Unit Cooler , PLC Control Rubber Sheet Cooler

Floor Type Batch Off Cooler / Rubber Sheet Cooling Line / Batch Off Unit

Product Description

Use:

Main function of the unit is to cool rubber strip coming either from two-roll mill or from roller-die calender and stacking of cooled rubber sheet on palette.

Features:

1. The operations of separate applying, air cooling, drying, cutting and wig-wag stacking are performed in a single machine, forming continuous production at high efficiency.

2. Rubber slabs are soaked thus applied with the separant so that the coating is even without pollution to the environment.

3. A long tim is set for air cooling of rubber slabs so that the cooling effect is good.

4. Slabs can be cut to length during operation and the length is adjustable.

5. Use of PLC control and the frequency-control speed regulatioin makes it possible to control the whole process.

Main technical spec.

Type	XPG-600	XPG-800	XPG-900
Max. rubber sheet width	600mm	800mm	900mm
The thickness of the rubber sheet	4-10mm	4-10mm	6-12mm
Rubber sheting temperature over room temperature after cooling	10	10	5
Conveying linear speed	3-24m/min	3-35m/min	4-40m/min
Swing sheet length	1-1.3m	1-1.3m	1-1.3m
Hanging height of the sheet hanging bar	1000-1500m	1000-1500m	1400m
Number of cooling fans	12 sets	20-32 sets	32-44 sets
Total power	16kw	25-34kw	34-50kw
Weight	11tons	22tons	34tons

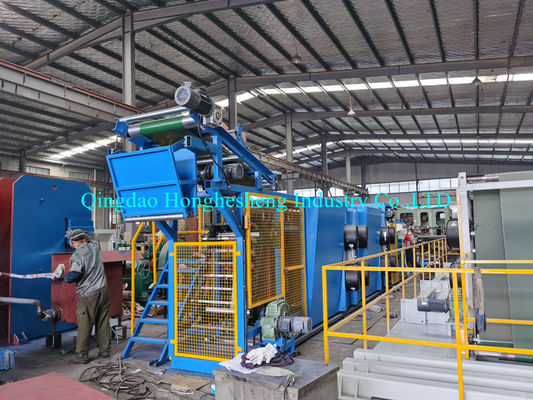

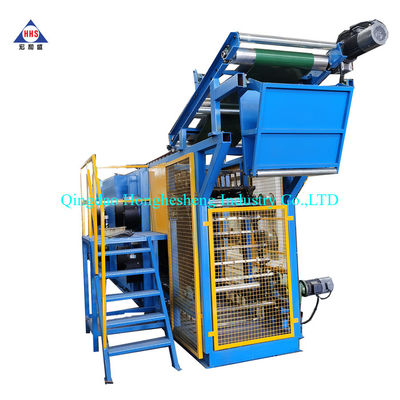

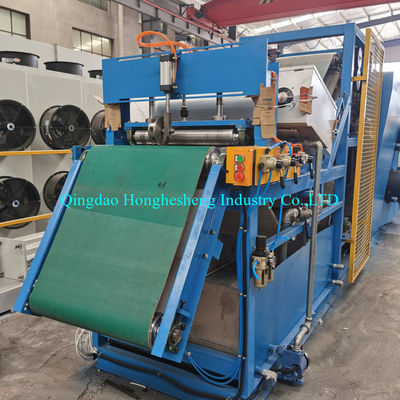

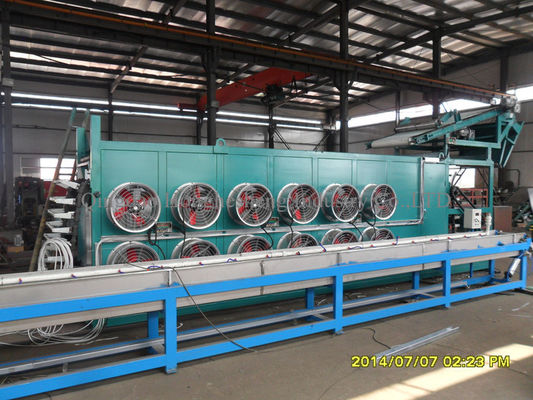

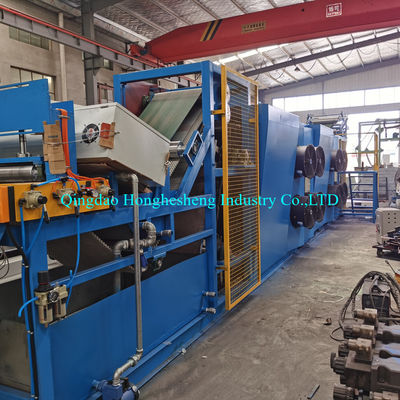

Machine Pictures:

Floor Type Batch Off Unit Cooler 26kw 380V PLC Controled 0

Floor Type Batch Off Unit Cooler 26kw 380V PLC Controled 2
