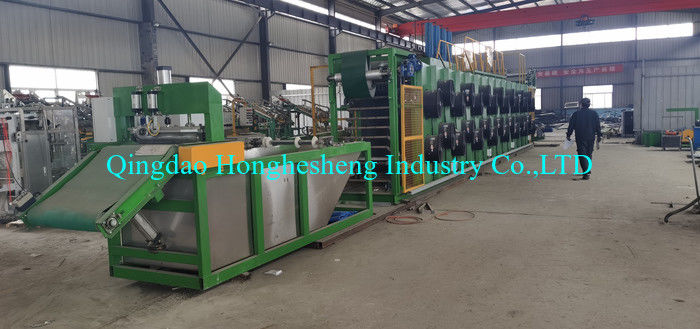

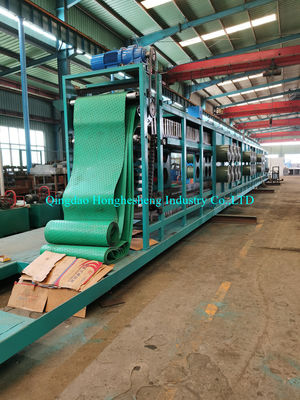

Separate Motor Batch Off Rubber Film Cooling Machine 1400mm

Separate Motor Batch Off Rubber Film Cooling Machine 1400mm
Separate Motor Batch Off Rubber Film Cooling Machine 1400mm Separate Motor Batch Off Rubber Film Cooling Machine 1400mm Separate Motor Batch Off Rubber Film Cooling Machine 1400mm

Large Image :  Separate Motor Batch Off Rubber Film Cooling Machine 1400mm

Product Details:
Place of Origin: CHINA
Brand Name: honghesheng
Certification: CE ISO
Model Number: 600-900mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:15000-40000 /SET
Packaging Details: wood package /20-40 container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

Separate Motor Batch Off Rubber Film Cooling Machine 1400mm

Front Take-away Coneyor Belt Max Linear Velocity: 400m/min Swing Range And Frequancy: 1.3m 10-16 Twice/min
Rubber Strip Temperature After Cooling: ≤ Room Temperature Add 5 Degree More Speed -adjusting Frequency Motor Of Lifting Swing Edvice: XWD1.5-3-1/11
Rubber Bar Pitch: 160 Or 101.6 Suitable Sheet Size: 600-900mm
High Light:

1400mm Rubber Film Cooling Machine


Batch Off Rubber Film Cooling Machine

Rubber batch-off cooler / batch off unit / rubber film cooling machine


Brief description:

1.Separate motor transmission

2.Each roll speed can be adjusted

3.Roll temperature control



This batch-off machine is mainly used for down stream line equipment of internal mixer and cooling sheet ,it can cool the rubber sheets from high temperature to room temperature ,and applicable to any kinds of rubber materials.


This machine consists of take-off, print, slitting, transportation, immersing insulation, lifting, sheet cooling fan with low power, low noise, high wind pressure and large capacity. This machine adopts PLC auto control system and measures with electric balance. It has two kinds of installation, floor type and high-frame type, for the user to choose.


1.The operations of coating separant,air cooling,drying,cutting and wig-wag stacking are set in one single cooling machine,achieving continuous operation with higher efficiency.

2.Rubber sheet are soaked before coating separant ,so the coating effect is very good and no enviromental pollution.

3.Time of air cooling process for rubber sheet cooling is set very long, so cooling effect is excellent.

4.Rubber sheet can be cut into certain length during operation and the cutting length is adjustable.

5.With PLC control and frequency-control speed regulation,it is very convenient to control the whole working process.


Technical Parameters:

Version / parameter XPG-600-700 XPG-800-900
Lab specification (4-12)× 600-700mm (4-12)× 800-900mm
Front take-away coneyor belt max linear velocity 400m/min 400m/min
Rubber strip hanging barwoving speed 0.117-202m/min 400m/min
Axial Fan 0.37kw 5760m 3 /h 0.37kw 5760m 3 /h
Swing range and frequancy 1.3m 10-16 twice/min 1.3m 10-16 twice/min
Rubber strip temperature after cooling ≤ Room temperature add 5 degree more ≤ Room temperature add 5 degree more
Speed -adjusting frequency motor of lifting swing edvice XWD1.5-3-1/11 XWD7.5-7-1/43
Speed -adjusting frequency motor of rubber swing edvice XWD1.5-3-1/87 XWD1.5-3-1/87
Rubber bar pitch 160 or 101.6 160 or 101.6
Max. hanging height of rubber strip 1400mm 1400mm

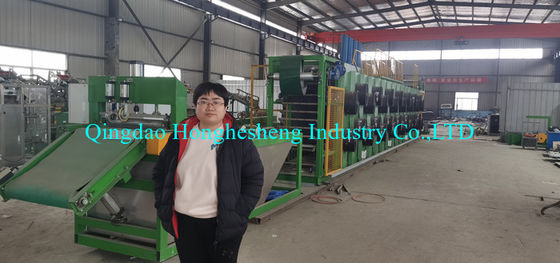

Plant and machines:



Separate Motor Batch Off Rubber Film Cooling Machine 1400mm 0

Separate Motor Batch Off Rubber Film Cooling Machine 1400mm 1


Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
“Quality, integrity, innovation, service”is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.

Our Services


1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support


2After sales:

1 once problems appear, we will reply in 24 hours. And give solutions


2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines







1. Q: Are you a manufacturer or training company?

A: We are the manufacturer. We have our own plant,worker and techniques research developing department.


2 .Q: Where is your factory located? How can I visit there?

A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.

Nearest airport is Qingdao liuting international airport

Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.


3. Q: What are your hot sale machine?

A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.


4. Q: How does your factory do regarding quality control?

A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.


5 .Q: Are the techncal parameter is fixed?

A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
