Product Details:
|
| Place Of Origin: | Shandong, China | Plastic Processed: | PVC, WPC, PP PE PVC WPC |
|---|---|---|---|
| Screw Diamete: | 115-250mm | Speed Ratio: | 4.5:1 |
| L/D: | 4-4.35 | Voltage: | 380V/50HZ Or As Your Requirements |
| Dimension(L*W*H): | 2770x655x1350 | Output(kg/h): | 160-1600 |
| Weight (KG): | 3500-8000 KG | Certification: | CE; ISO |
| High Light: | WPC Rubber Extruder Machine,40r/Min Rubber Extruder Machine,Screw Diameter 115mm Rubber Extruder |
||

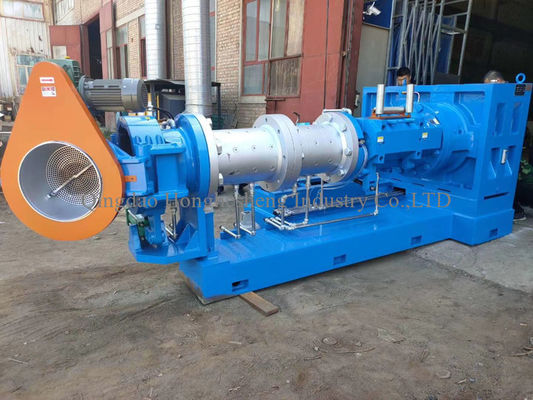

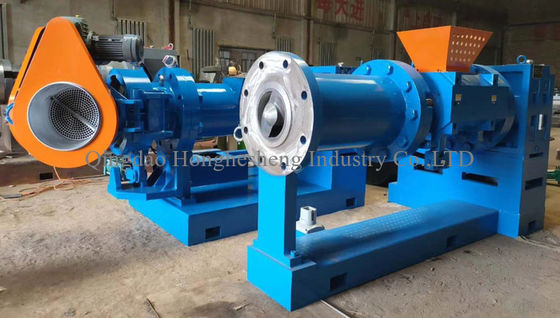

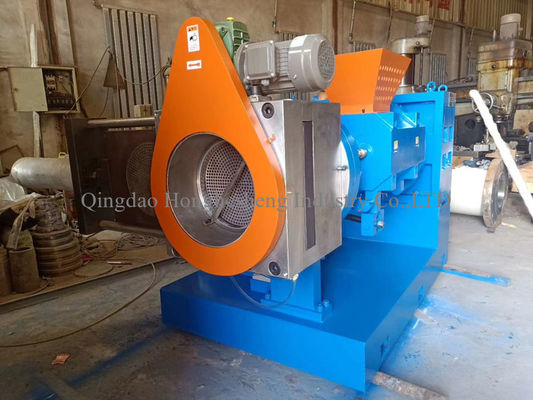

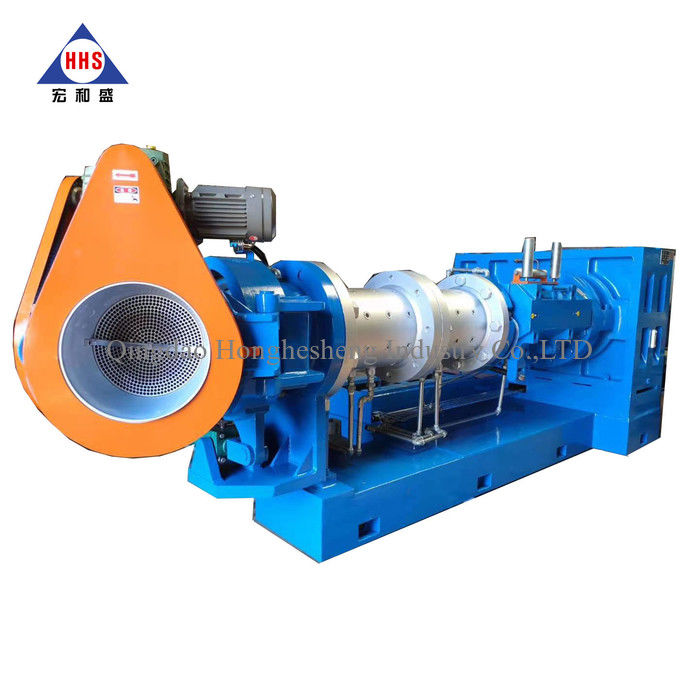

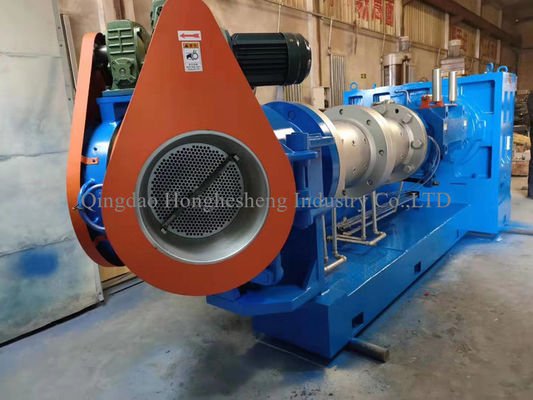

Rubber strainer machine mainly consists of the extruding part for materials feeding, reducer, motor and it’s control system. It is is mainly applied for cleaning out the impurities from rubber mixture or reclaimed rubber.
The filter rubber raw material enters the rolling mill to filter away impurities such as scrap iron,stone,etc.to ensure the safety of the roller, the threshing of the screw rod promotes the uniform plasticization of the rubber, and cool preservation by water can be adopted for stablizing the process.
1) Rubber strainer machine can be used for the filter of various kinds of rubber products.
2) Rubber strainer machine is suitable for processing natural rubber and various kinds of synthetic rubbers.
3) Rubber strainer machine can be hot feeding, cold feeding, or pin-barrel type cold feeding.
4) The head of rubber strainer is hydraulic opening. It can be designed and produced according to customer’s request.
|
Overall dimension
|
2770*655*1350
|
3600*820*1500
|
4229*1400*1528
|
4220*1400*1528
|
♦ Screw made of sapecial steel is with nitrogentreatment,durable.
♦ Jacketed type barrel can cooled for cooling the rubbers effectively.
♦ Double head strainer to be quickly & easily exchanged.
♦ Smoothly running and high ouutput.
♦ Equipped with die-head auto opeaning system when electric power is cut of.
