Product Details:
|
| Place Of Origin: | Shandong, China | Model Number: | XPG-600 |
|---|---|---|---|
| Condition: | New | Brand Name: | HHS |
| Voltage: | 380V | Suitable Sheet Size: | 600-900mm |
| Dimension(L*W*H): | 14850/18600*1880*3100mm | Weight: | 20T |
| Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Power: | 20-26kw |
| Color: | As Customer Require | Line Speed: | 5~25m/min |
| Maximum Cutting: | 450mm | Length Tolerance Of: | <3mm |
| High Light: | Rubber Sheet Batch Off Cooling Machine,35M/Min Batch Off Cooling Machine,800mm Rubber Sheet Batch Off Machine |
||
Advantage:
1. 20 years on batch off cooler manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao BOJIA factory
working conditions:
1.Machine application: The rubber sheet from the Calendar or Twin Screw Extruding
Sheeter, soaked, cooled, dryed etc.
2.Machine using condition: highest temperature 40°C, lowest temperature 5°C, highest relative humidity 95%.
3.Power: AC380/220,50Hz, cooling water pressure: 0.4MPa, cooling pressure 0.7~0.8MPa
Technican Parameter :
| Item | XPG-600 | XPG-800 | XPG-900 | |
| Max.rubber sheet width(mm) | 600 | 800 | 900 | |
| The thickness of the rubber sheet(mm) | 4-10 | 4-10 | 6-12 | |
|
Rubber sheeting temperature over room temperature after cooling |
5 | 5 | 5 | |
| Linear speed of taking-in conveyer(m/min) | 3-35 | 3-35 | 3-35 | |
| Linear speed of sheet hanging bar(m) | 1-1.26 | 1-1.26 | 1-1.26 | |
| Hanging height of the sheet hanging bar(mm) | 1000 | 1200 | 1400 | |
| Number of cooling fans(Set) | 12-16 | 20-32 | 24-32 | |
| Total power(kw) | 16 | 20-26 | 25-35 | |
| Overall dimension(mm) | 12400*2140*2820 | (14850-18600)*2220*2860 | (18000-21750)*2300*2980 | |
| About weight(t) | 10 | 20 | 30 |
Structure Brief Introduction :
1.take in device:
Used to take pressure in film ,according to cylinder controlled by fluctuation, operation convenience. taking in speed can be controlled by manual,it can be ascension
Take device adopts conveyor, the transmission system adopts frequency governor to control .
2.Soak device:
Equipped with triplet,manual rotary valve and pressure cylinder,adjust pressed roll according tocylinder control through the manual rotary valve,in order to Make discontinuous film compressed together and the film continuous a slice.
3.Leaching plasma device:
Function : take over the film conveying equipment undertakes immersing, and carry on isolation agent.Equipped with cooling water pipe,through the cooling water source,Continuous cooling liquid isolation, in order to control the temperature.
4.Clame take up device:
This device through the conveyor belt with isolation liquid film will be conveyed to the air cooling section gripping.
5.Wind cooling device:

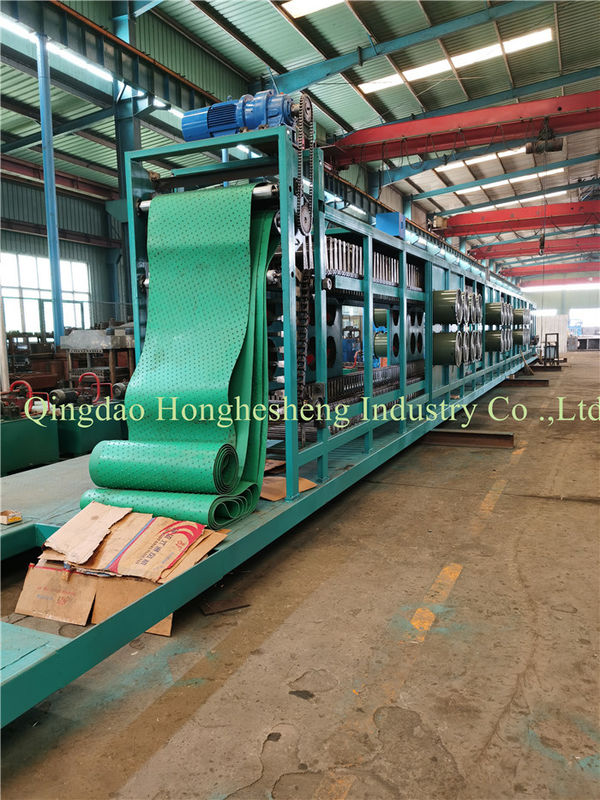

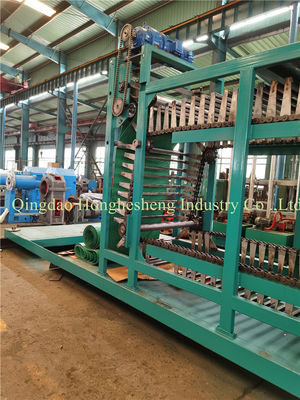

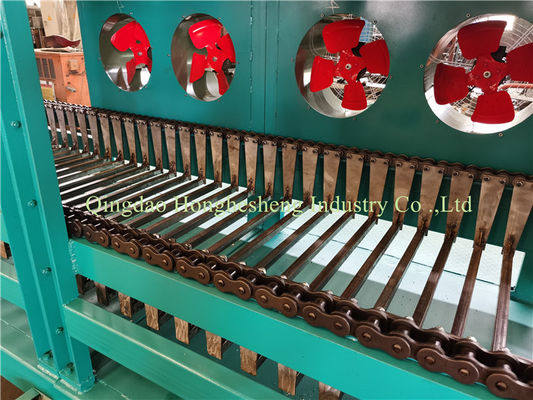

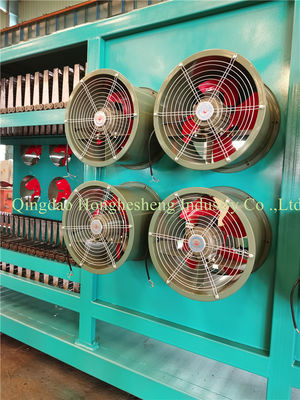

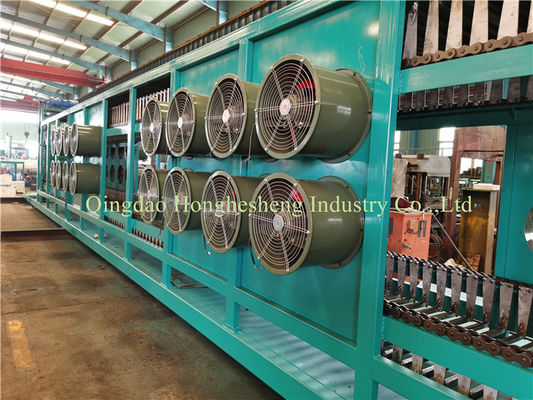

Constitute:it is made of frame ,cooling fans,hook rail and Hang lever conveyor. Cooling fan selection adopts 20 axial fan,satisfy the requirements of film cooling; Hang lever are installed on the taper pin . film in hang lever.
6. Conveying laminated device:
Will the film into laminated measures, continuous fold in film seat
7.Air control part:
Take-in control,each cylinder pressure and in the action,control system adopts
reliable performance with high quality products.
8. electrical control system
(1)All the wires controlled by PLC,it easy for operation ,reliable quality.
(2)The speed of production line can be through the inverter adjustment, make the film cooling line speed and host match.
(3)Fan control by the group control each motor are motor over-current protection circuit breaker, when a fault fan produced when the output signal of the fan, fault in all units and stop hair drier, just deal with a fault can be fan.
