Product Details:
|
| Front Take-away Coneyor Belt Max Linear Velocity: | 400m/min | Swing Range And Frequancy: | 1.3m 10-16 Twice/min |
|---|---|---|---|
| Rubber Strip Temperature After Cooling: | ≤ Room Temperature Add 5 Degree More | Speed -adjusting Frequency Motor Of Lifting Swing Edvice: | XWD1.5-3-1/11 |
| Rubber Bar Pitch: | 160 Or 101.6 | Suitable Sheet Size: | 600-900mm |
| High Light: | 5 Layer Mesh Belt Film Cooler,Xpg-800mm Film Cooler,Overhead Batch Off Cooler |
||
Brief description:
1.Separate motor transmission
2.Each roll speed can be adjusted
3.Roll temperature control
Usage:
The device can meet the requirements of rubber refining process, and the combination of mixer or kneading machine and double cone automatic feeding press machine or open mixer, forming an automatic production line, film cooling, slicing, lamination and other processes, to achieve the effect of continuous production operations. The cooling mode of film can be spray type or soak type according to user requirements.
Features:

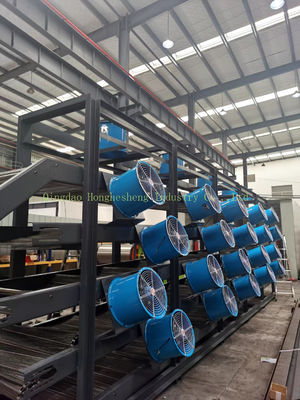

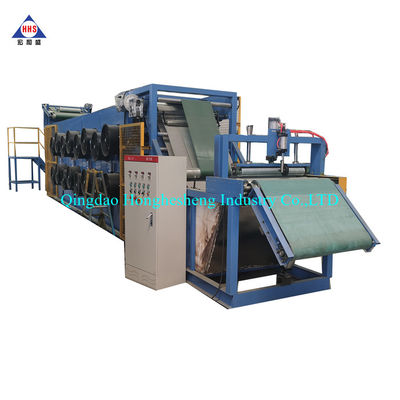

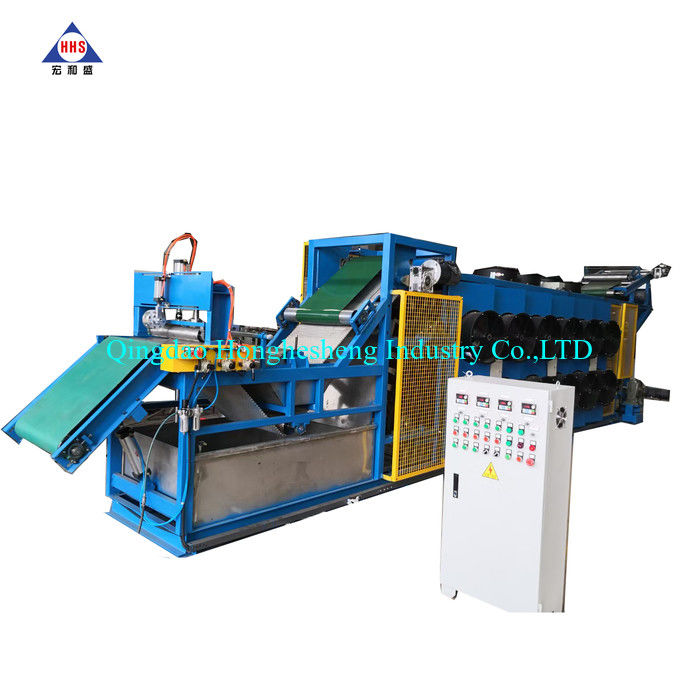

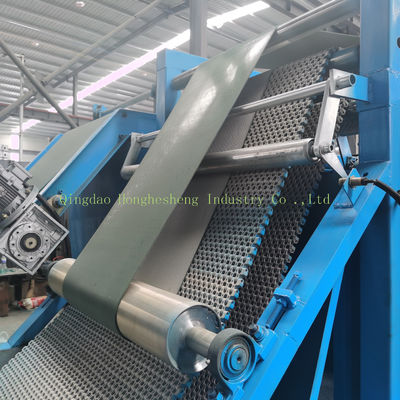

1.The structure of the machine adopts the suspension belt lifting and stainless steel braided mesh belt lifting. The cooling unit is composed of splicing device, isolated water tank, lifting device, air cooling and drying device, cutting device or film stacking device, realizing automatic continuous operation and high efficiency.
2. According to the needs of users, longitudinal and transverse knife cutting mechanism can be added, and the length of film hanging glue can be controlled at will: the application of isolator will not cause pollution to the environment.
3. The electronic control system adopts programmable logic controller (PLC), the unit adopts variable frequency motor, which can adjust the speed according to the environmental temperature and process requirements, so that the film can be fully cooled and dry to meet the process requirements.
Technical Parameters:
| Version / parameter | XPG-600-700 | XPG-800-900 |
| Lab specification | (4-12)× 600-700mm | (4-12)× 800-900mm |
| Front take-away coneyor belt max linear velocity | 400m/min | 400m/min |
| Rubber strip hanging barwoving speed | 0.117-202m/min | 400m/min |
| Axial Fan | 0.37kw 5760m 3 /h | 0.37kw 5760m 3 /h |
| Swing range and frequancy | 1.3m 10-16 twice/min | 1.3m 10-16 twice/min |
| Rubber strip temperature after cooling | ≤ Room temperature add 5 degree more | ≤ Room temperature add 5 degree more |
| Speed -adjusting frequency motor of lifting swing edvice | XWD1.5-3-1/11 | XWD7.5-7-1/43 |
| Speed -adjusting frequency motor of rubber swing edvice | XWD1.5-3-1/87 | XWD1.5-3-1/87 |
| Rubber bar pitch | 160 or 101.6 | 160 or 101.6 |
| Max. hanging height of rubber strip | 1400mm | 1400mm |
Plant and machines:
Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
“Quality, integrity, innovation, service”is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
.
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
