Product Details:
|
| Front Take-away Coneyor Belt Max Linear Velocity: | 400m/min | Swing Range And Frequancy: | 1.3m 10-16 Twice/min |
|---|---|---|---|
| Rubber Strip Temperature After Cooling: | ≤ Room Temperature Add 5 Degree More | Speed -adjusting Frequency Motor Of Lifting Swing Edvice: | XWD1.5-3-1/11 |
| Rubber Bar Pitch: | 160 Or 101.6 | Suitable Sheet Size: | 600-900mm |
| High Light: | Hang Rod Type Batch Off Cooler,600mm Sheet Batch Off Cooler,ISO Rubber Film Cooling Machine |
||
Brief description:
1.Separate motor transmission
2.Each roll speed can be adjusted
3.Roll temperature control
Usage:
This machine is used for film cooling.
Features:

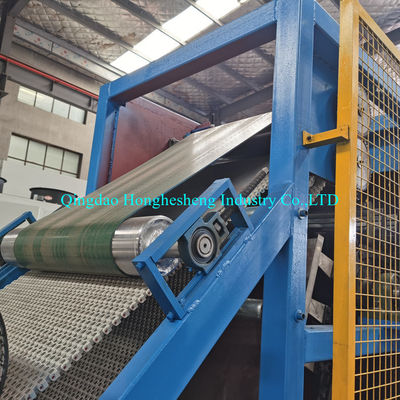

The machine is rod-hanging type, which is mainly composed of main engine and electric control system. It has two kinds of structures: overhead and ground. It has reasonable design, flexible operation, cooling effect in line with technological requirements, spacious space and so on.
Technical Parameters:
| Version / parameter | XPG-600-700 | XPG-800-900 |
| Lab specification | (4-12)× 600-700mm | (4-12)× 800-900mm |
| Front take-away coneyor belt max linear velocity | 400m/min | 400m/min |
| Rubber strip hanging barwoving speed | 0.117-202m/min | 400m/min |
| Axial Fan | 0.37kw 5760m 3 /h | 0.37kw 5760m 3 /h |
| Swing range and frequancy | 1.3m 10-16 twice/min | 1.3m 10-16 twice/min |
| Rubber strip temperature after cooling | ≤ Room temperature add 5 degree more | ≤ Room temperature add 5 degree more |
| Speed -adjusting frequency motor of lifting swing edvice | XWD1.5-3-1/11 | XWD7.5-7-1/43 |
| Speed -adjusting frequency motor of rubber swing edvice | XWD1.5-3-1/87 | XWD1.5-3-1/87 |
| Rubber bar pitch | 160 or 101.6 | 160 or 101.6 |
| Max. hanging height of rubber strip | 1400mm | 1400mm |
Plant and machines:
1. Overhead/Hanging Batch off Cooling Line
2. On Ground Batch off Cooling Line
Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
“Quality, integrity, innovation, service”is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
.
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to contact us fast? if you do not mind, l
Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
Contact Person: Miss. Sophie
Tel: +8613573826806
